J599S5 Lightweight Miniature 38999-Type Circular Connectors
Up to 41 % lighter · same insert arrangements as Series III · 1 to 128 contacts
Miniature Circular Connectors
Smaller, lighter circular connectors: 38999 Series III-type miniatures, lightweight micro circular XY2, IP67 push-in XY1 and subminiature J599S and JYS.
When panel space and weight are tight, a full-size 38999 Series III-type connector can be more than the design needs. Our miniature and micro circular connectors cut weight and size while keeping sealed, shielded, vibration-resistant performance.
J599S5 keeps Series III-type insert arrangements and is 30 to 41 % lighter. XY2 is about 30 % lighter and 50 % smaller than Series III with the same layout; XY1 adds push-in coupling and IP67 at about half the weight. For the very smallest spaces, J599S (threaded) and JYS (bayonet) use shell sizes from 2 to 7.
Compare series
| Series | Coupling | Weight saving | Shell sizes | Insert arrangements | Temperature | Contact sizes |
|---|---|---|---|---|---|---|
| J599S5 | Triple-start thread | 30–41 % vs. Series III (aluminum) | 9 to 25 | 95 | −65 to +200 °C | 22D to 12 (5–23 A) |
| XY2 | Triple-start thread | ≈ 30 % vs. Series III | 8 to 23 (9 sizes) | 29 | −65 to +200 °C | 23, 20HD, 16, 12 (5–23 A) |
| XY1 | Push-in | ≈ 50 % vs. Series III | 07 to 10 | 8 | −40 to +120 °C (IP67) | 23 to 12 (5–23 A) |
| J599S | Triple-start thread (shells 5, 7) | — | 3, 5, 7 | 6 | −65 to +200 °C | 22D, 26 (2–5 A) |
| JYS | Bayonet | — | 2, 6 | 3 | −55 to +175 °C | 22D (5 A) |
XY2 Lightweight Micro Circular Connectors
≈ 30 % lighter, 50 % smaller than Series III · threaded · 9 shell sizes
XY1 Push-In Miniature Circular Connectors, IP67
IP67 · push-in quick connect · ≈ 50 % lighter than Series III
J599S Subminiature Circular Connectors (38999 Series III Style)

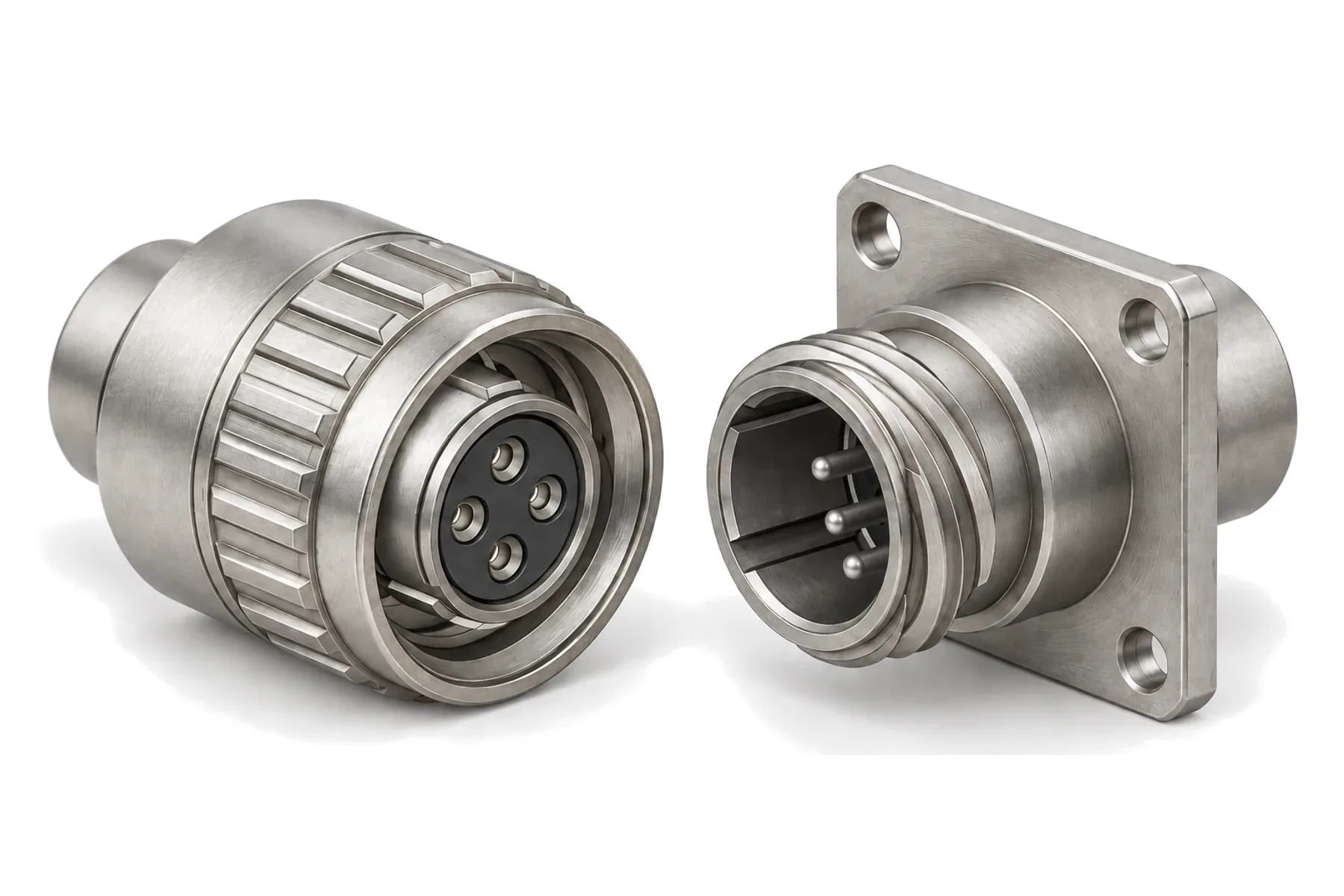

Shells 3, 5, 7 · threaded self-locking · 22D and 26 contacts
JYS High-Density Subminiature Bayonet Connectors
Bayonet · shells 2 and 6 · size 22D contacts
How to choose
Which series
Keep Series III layouts: J599S5. Lowest weight with threaded coupling: XY2. Fast push-in with IP67: XY1. Smallest shells: J599S or JYS.
Keep your insert arrangement
Choose the same shell size and arrangement you use in Series III; contacts and crimp tools stay the same.
Panel cut-out
Use the 20G receptacle to replace Series III receptacles without changing the panel, or the 20 receptacle for the smallest footprint.
Shell material
Aluminum for lowest weight, stainless steel or titanium for strength; marine (M) versions for salt and acid environments.
Backshells
Straight, 90°, cable-clamp and shielded backshells in matching finishes.
Options beyond the standard connector
XY2 lightweight micro circular
≈ 30 % lighter, 50 % smaller than Series III.
XY1 IP67 push-in
Push-in coupling, IP67, ≈ 50 % lighter.
Full-size 38999-type connectors
Series III-type connectors with 184 insert arrangements, hermetic and high-temperature versions.
Cadmium-free marine grade
J599WR with nickel-PTFE finish and acid salt spray testing.
Frequently asked questions
Why choose a miniature circular connector instead of Series III?
To save weight and panel space without redesigning the circuit. J599S5 keeps Series III-type insert arrangements and contacts but is 30–41 % lighter.
Do miniature connectors mate with Series III connectors?
No. The coupling thread is smaller, so both halves must be of the same miniature series. The contacts and insert arrangements are the same.
From sample to production
Send your requirement
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are made to your order. Third-party testing to your specification is available on request.
Your approval
You test the samples in your own equipment and approve them.
Series production
Production follows the approved sample configuration.
Need a quote or a drawing?
Send your part number, pin-out or drawing. An engineer will reply by email.
