CT-M Glass-Sealed Hermetic Receptacles, −55 to +200 °C
Glass-to-metal seal · 152 kPa leak-tight · −55 to +200 °C
Hermetic Connectors
Glass-sealed hermetic receptacles that keep gas and moisture out of enclosures — 38999-type, 26482-type, bulkhead feedthrough and miniature designs.
A hermetic connector passes circuits into a sealed enclosure without letting gas or moisture through. In glass-sealed designs the contacts are fused into the shell with glass, so the connector stays tight even when unmated.
Our range covers 38999-type hermetic receptacles (J599 Series III and GJB599 Series I), 26482-type K receptacles, P-C bulkhead feedthroughs with contacts up to 200 A, small CT-M glass-sealed receptacles to +200 °C, and ZH28 receptacles with up to 61 contacts. Leak rate, pressure and temperature are stated per series; other conditions can be tested to your requirements.
Compare series
| Series | Sealing | Contacts | Current rating | Temperature | Rated voltage |
|---|---|---|---|---|---|
| CT-M | No leakage at 152 kPa | 2 to 5 | 7.5 A / 13 A | −55 to +200 °C | 250 V |
| K | Leak-tested at 101 kPa | 3 to 61 | 7.5 A | −55 to +125 °C | 500 VAC |
| P-C | ≤ 0.13 kPa/min at 101 kPa | 4 to 31 | 7–200 A | −60 to +60 °C (PR-C +150 °C) | 500 V, 400 Hz |
| ZH28 | Glass-sealed | 3 to 61 | 3–9 A (max. 6–18 A) | −60 to +155 °C (max. 200 °C) | 400–700 V |
K Series Hermetic Receptacles (26482 Type)
26482 type · shells 8–24 · 3 to 61 contacts

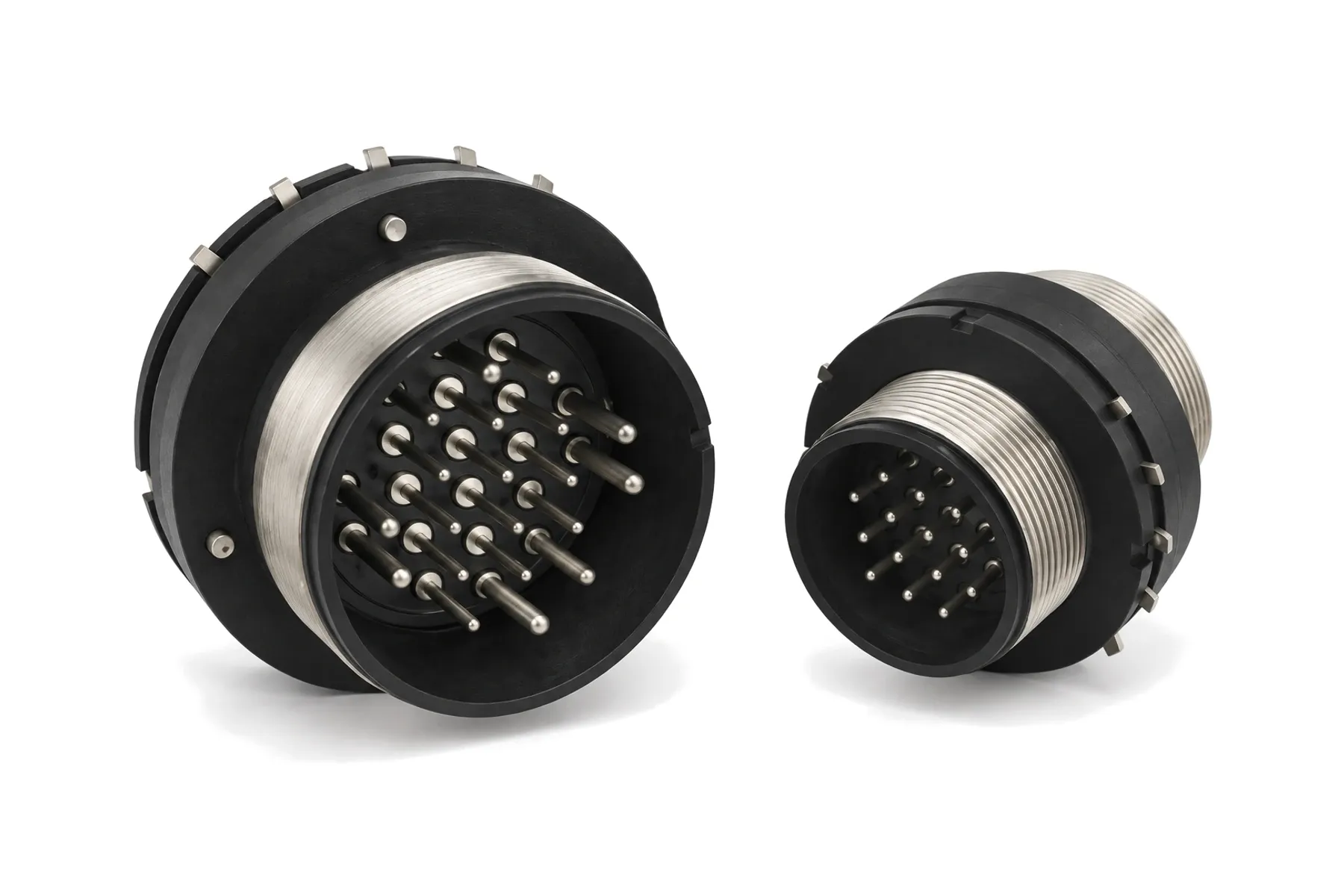

P-C Bulkhead Feed-Through Hermetic Connectors, up to 200 A
Bulkhead feed-through · contacts up to 200 A · PR-C to +150 °C
ZH28 Glass-Sealed Hermetic Receptacles, 3 to 61 Contacts
Glass-sealed · 3 to 61 contacts · −60 to +155 °C
How to choose
Leak rate and pressure
Tell us the pressure differential and leak rate you need; each series page states its test condition.
Mating interface
Choose the series that matches your plug: 38999-type, 26482-type, P-type or ZH23.
Current
Signal contacts from 3 A; P-C feedthroughs carry up to 200 A per contact.
Temperature
CT-M to +200 °C; ZH28 to +155 °C (+200 °C maximum); PR-C to +150 °C.
Options beyond the standard connector
38999-type hermetic
J599 Series III hermetic and feedthrough receptacles, ≤ 1 × 10⁻⁸ Pa·m³/s.
Glass-sealed for oil and gas
SHX10 watertight connectors with glass-sealed receptacles.
Frequently asked questions
Can you test to my leak-rate requirement?
Yes. Tell us the leak rate, test gas and pressure, and we test to your requirements, including third-party testing on request.
Can hermetic receptacles be customized?
Yes. Contact counts, contact sizes, shell materials and mounting can be customized.
From sample to production
Send your requirements
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are built to order. The minimum order quantity is 10 pieces, and samples and production orders each take 4–8 weeks. Third-party testing to your specification is available on request.
Your approval
You test the samples in your own equipment and approve them.
Series production
Production follows the approved sample configuration, with machining, molding, plating and assembly in our own Shenyang factory.
