SYRM 1.905 mm Pitch Rectangular PCB Connectors
1.905 mm pitch · 10–206 contacts · 55302 type
Rugged Rectangular PCB Connectors
Rectangular board-to-board and board-to-cable connectors for rugged electronics — 55302 type, DIN 41612 type, mixed power, zero insertion force and modular.
Rugged electronic units need board connectors that survive vibration and shock, carry both signal and power, and stay reliable over many mating cycles.
Our range covers SYRM (1.905 mm, up to 206 contacts), SYRMD with 13 A and 23 A power contacts, SYW and J55302 (MIL-DTL-55302 type) on a 2.54 mm grid, PDS and J18 (DIN 41612 type) with wire-spring sockets, CZ4 modular connectors to 50 A and 15,000 cycles, and DMK zero-insertion-force connectors.
Compare series
| Series | Pitch | Contacts | Current rating | Temperature | Mating cycles |
|---|---|---|---|---|---|
| SYRM | 1.905 mm | 10 to 206 | 3 A | −65 to +125 °C | 500 |
| SYRMD | 1.905 mm (signal) | 2–6 power + 11–63 signal | 3 A / 13 A / 23 A | −65 to +125 °C | 500 |
| SYW | 2.54 mm | 10 to 70 | 5 A | −65 to +125 °C | 500 |
| J55302 | 2.54 mm | 9 to 240 | −65 to +125 °C | 500 | |
| PDS | 2.54 mm | 45 to 240 | −55 to +125 °C | 1000 | |
| J18 | 2.54 mm | 32 to 96 | 2 A | −55 to +125 °C | 1000 |
| CZ4 | Modules of 2, 4, 5, 10, 45 | 1–50 A | −55 to +125 °C | Up to 15,000 | |
| DMK | 60, 96, 156, 260 | 5 A | −55 to +105 °C | 10,000 |

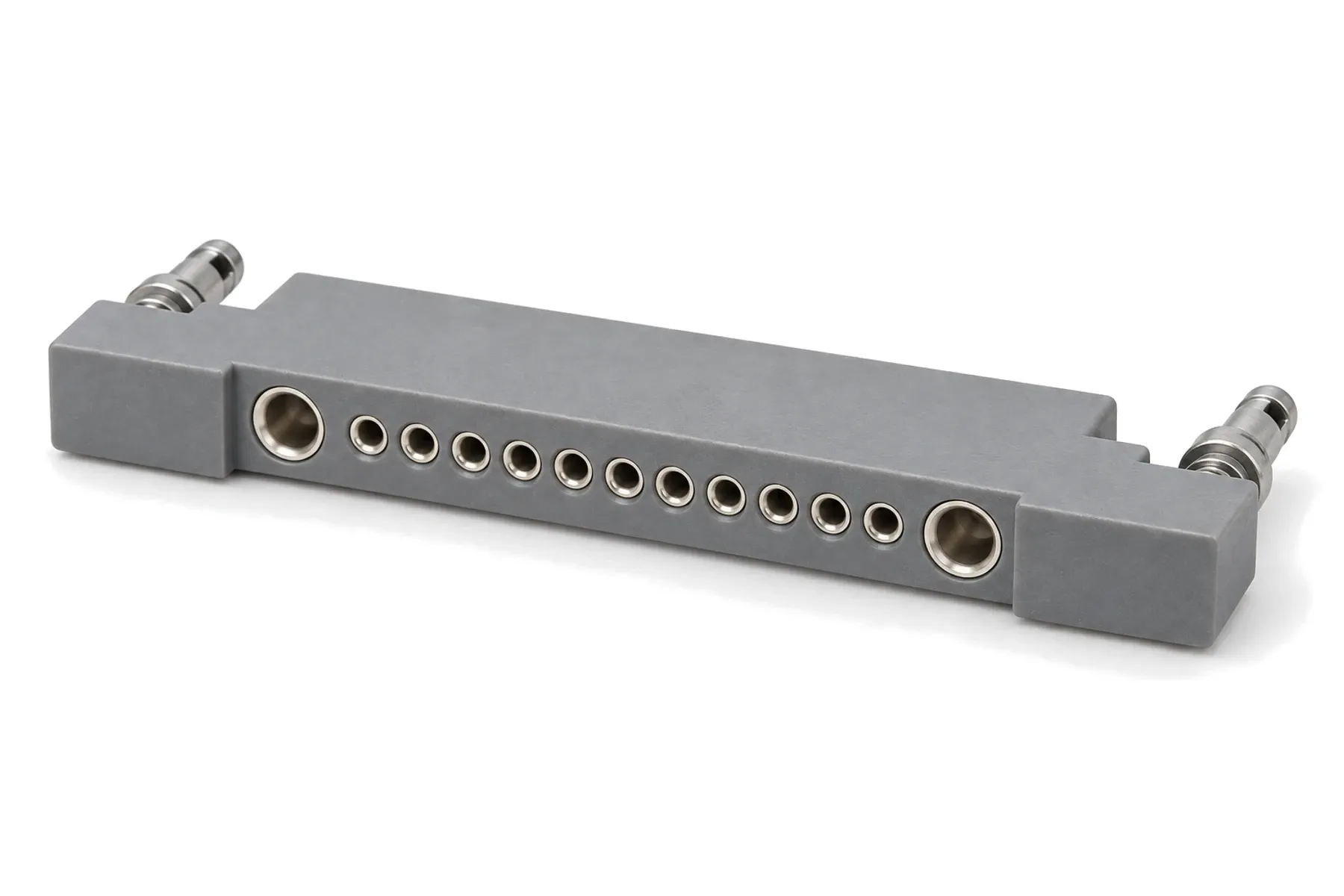

SYRMD Mixed-Power Rectangular PCB Connectors, 13 A and 23 A
Power + signal · 13 A / 23 A power contacts · 1.905 mm

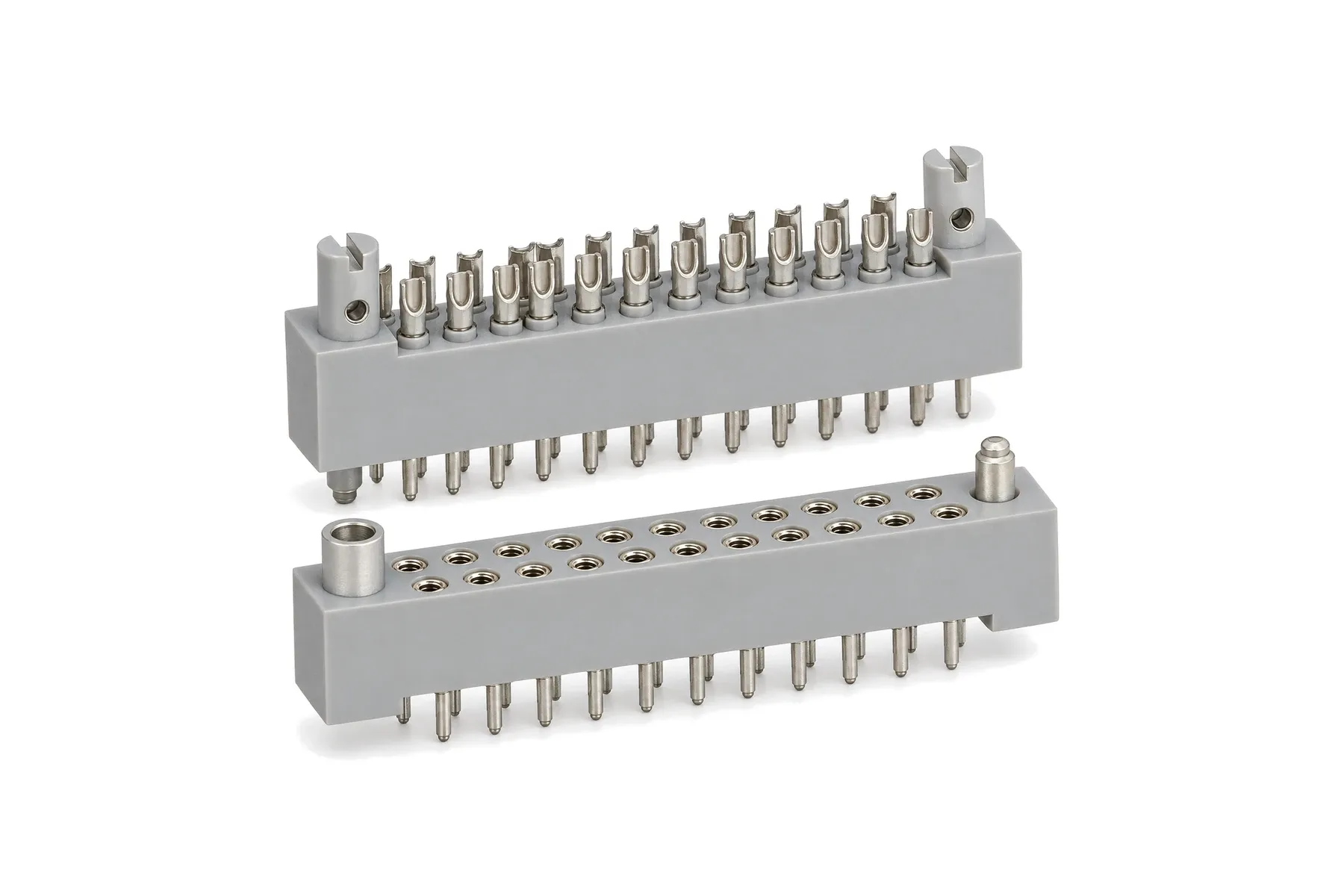

SYW 2.54 mm Rectangular PCB Connectors (MIL-DTL-55302 Type)
2.54 mm · 10–70 contacts · 5 A · 55302 type

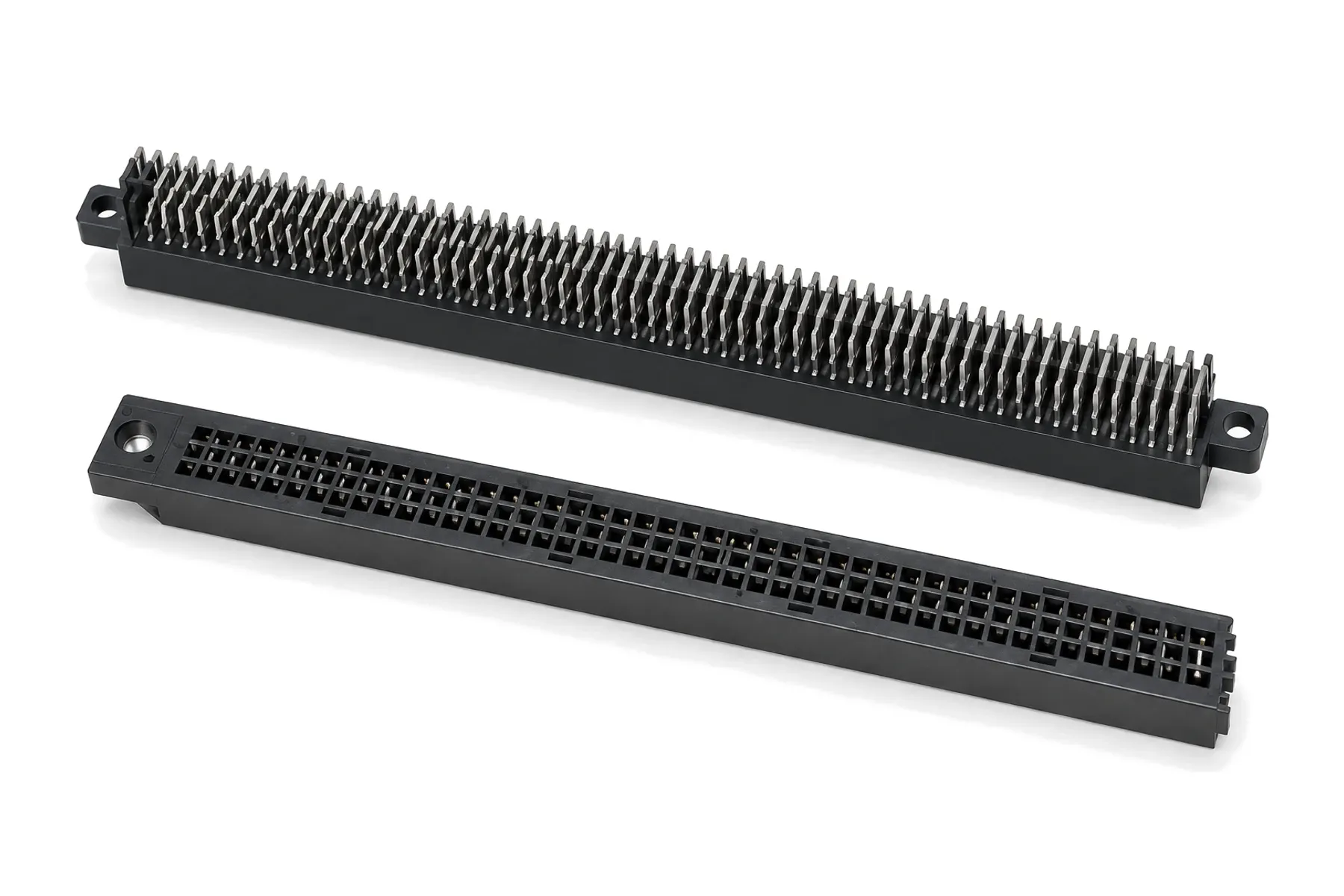

J55302 High-Density 2.54 mm PCB Connectors, 90 to 240 Contacts
2.54 mm grid · up to 240 contacts · guide-pin polarized

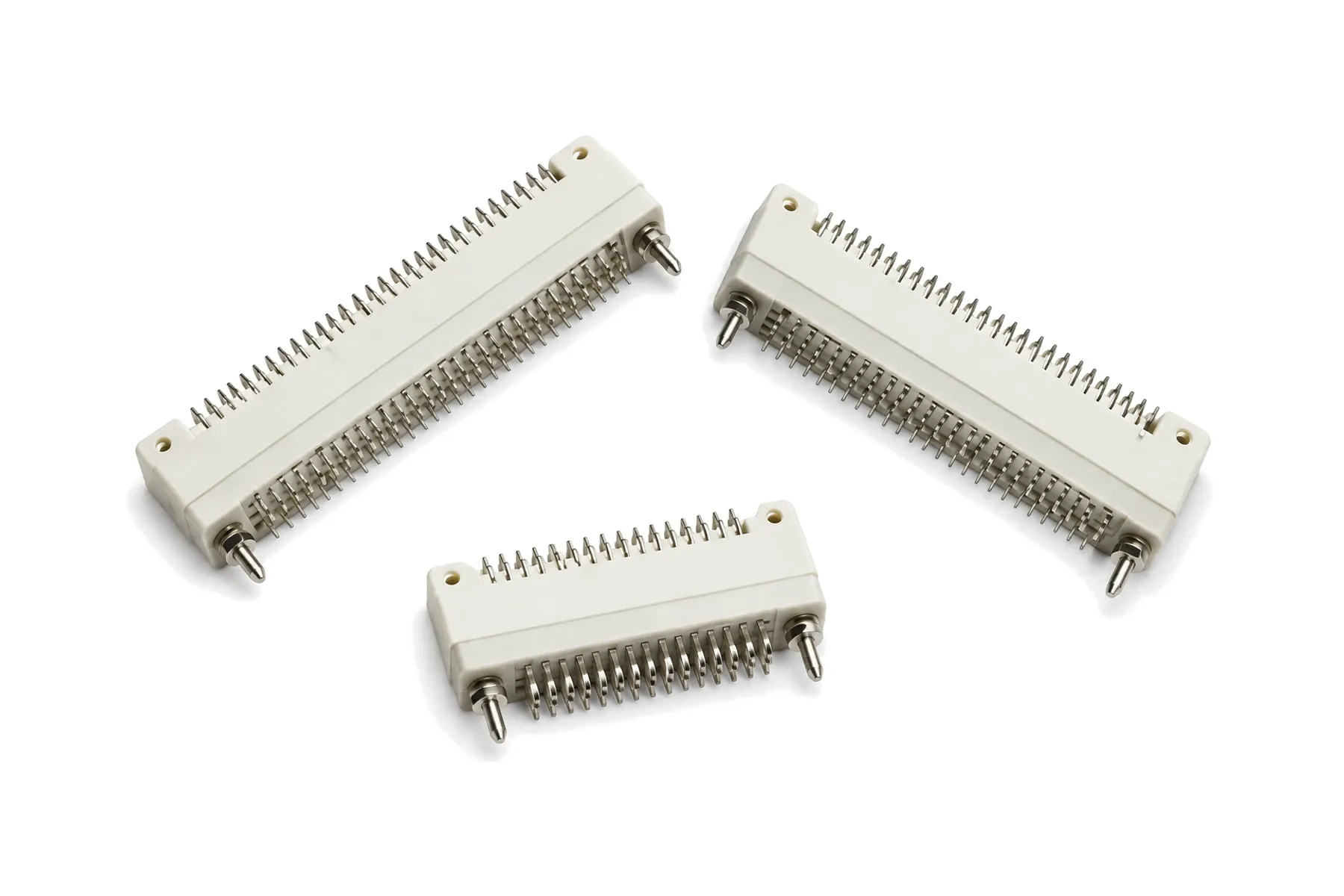

PDS High-Density Rectangular PCB Connectors, 45 to 240 Contacts
45–240 contacts · wire-spring sockets · 1000 cycles

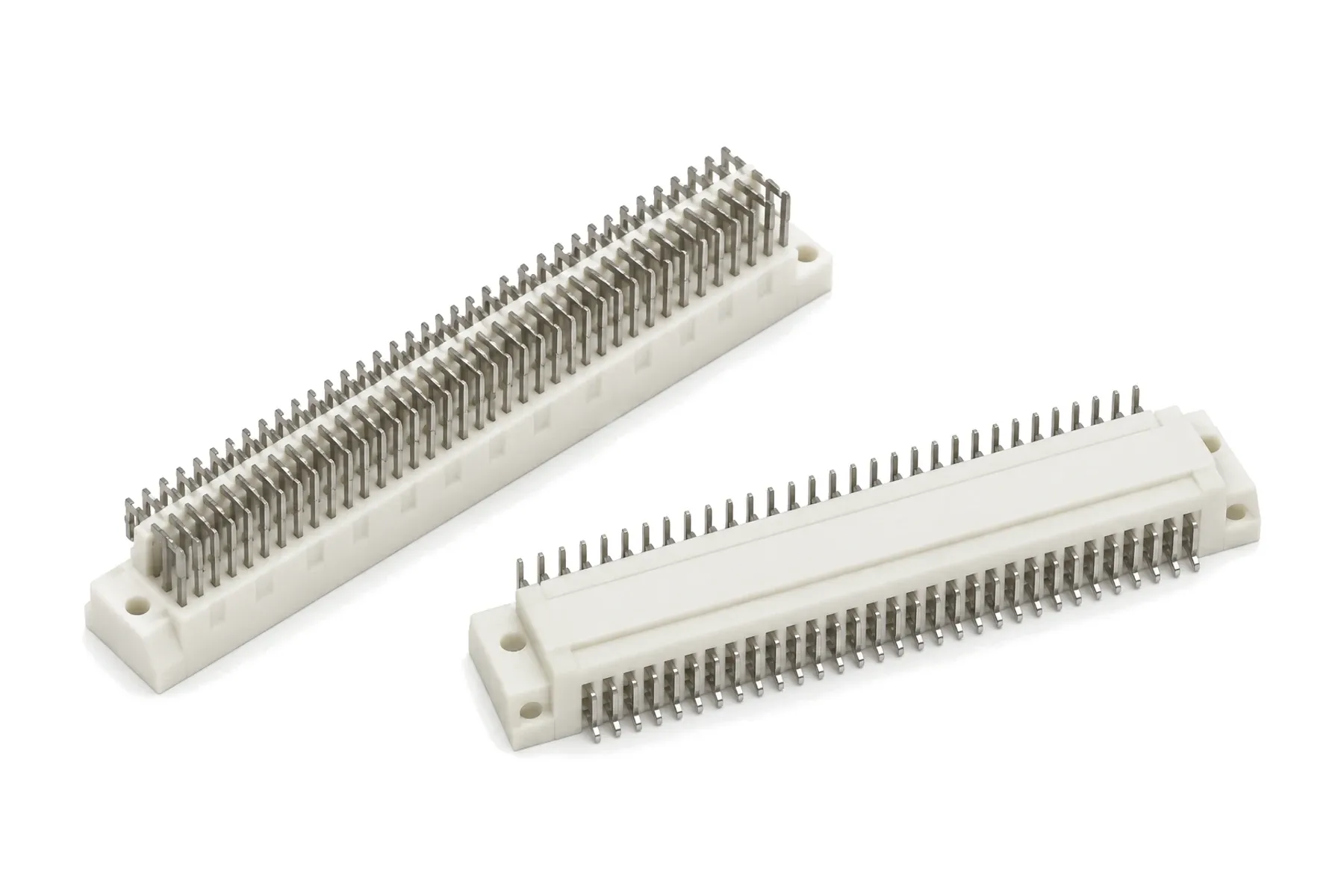

J18 DIN 41612-Type Rectangular Connectors with Wire-Spring Contacts
DIN 41612 type · 32–96 contacts · wire-spring sockets
CZ4 Modular Rectangular Connectors, up to 15,000 Mating Cycles
Modular · 1–50 A contacts · 15,000 cycles quick-lock

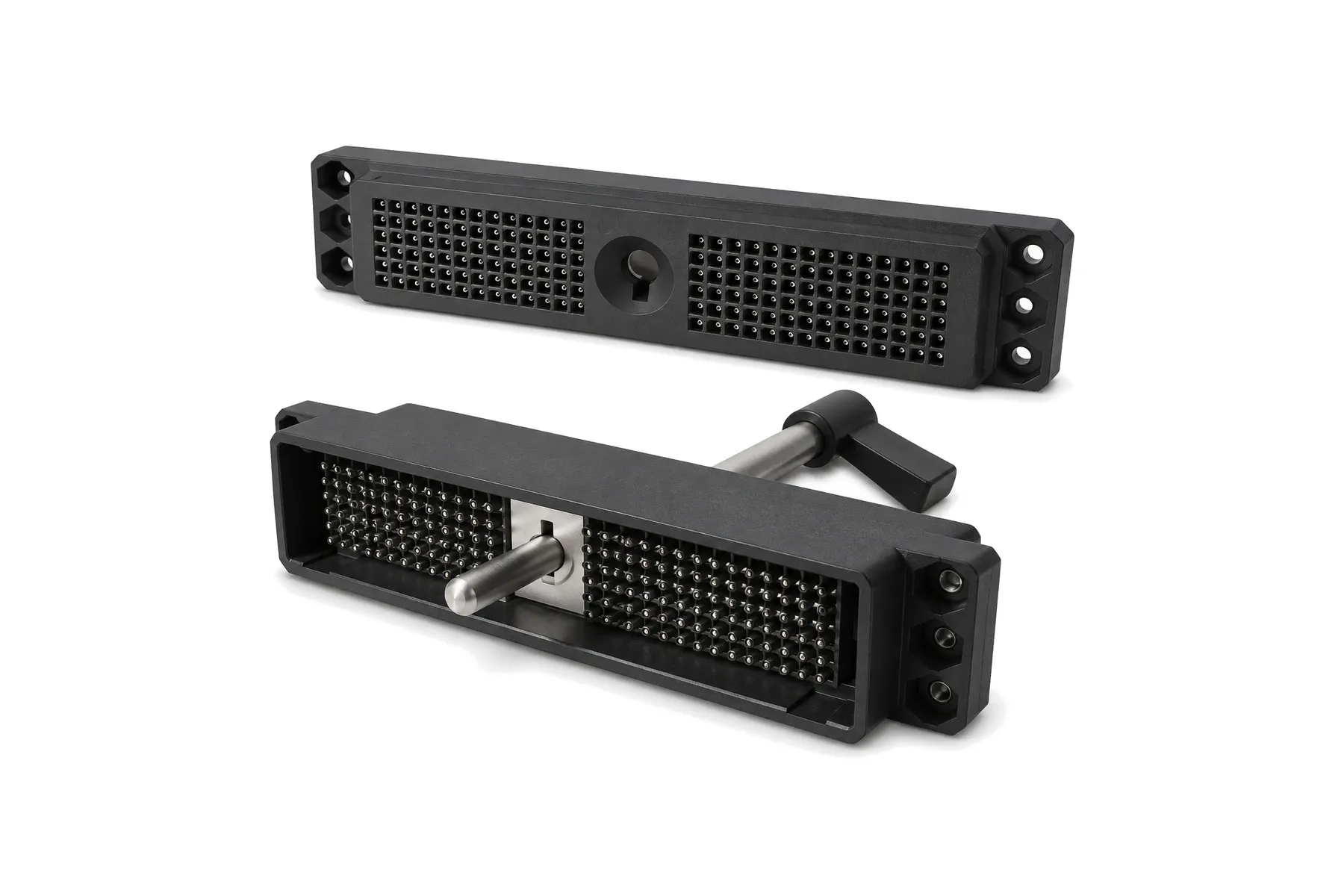

DMK Zero-Insertion-Force Rectangular Connectors, 10,000 Cycles
Zero insertion force · 60–260 contacts · 10,000 cycles
How to choose
Pitch and density
1.905 mm SYRM for density; 2.54 mm SYW, J55302, PDS, J18 for standard grids.
Power
SYRMD (13/23 A), CZ4 (to 50 A).
Mating cycles
500 cycles (SYRM, SYW), 1,000 cycles (PDS, J18), 10,000 cycles (DMK, POGO), 15,000 cycles (CZ4 quick-lock).
Standard form
MIL-DTL-55302 type or DIN 41612 type.
Options beyond the standard connector
Micro-D
1.27 mm pitch twist-pin connectors.
POGO spring pins
Zero insertion force, 10,000 cycles.
Frequently asked questions
Can you supply connectors to MIL-DTL-55302 part numbers?
Send us the M55302 part number; we will propose the matching configuration and provide samples for your mating test.
From sample to production
Send your requirements
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are built to order. The minimum order quantity is 10 pieces, and samples and production orders each take 4–8 weeks. Third-party testing to your specification is available on request.
Your approval
You test the samples in your own equipment and approve them.
Series production
Production follows the approved sample configuration, with machining, molding, plating and assembly in our own Shenyang factory.
Need a quote or a drawing?
Send your part number, pin-out or drawing. Every inquiry is acknowledged by email within 1 business day, and an engineer follows up with a matched configuration, drawing or quotation.
