PBH Push-Pull Circular Connectors, 5 and 7 Contacts
Push-pull · 5 or 7 contacts · vibration to 5000 Hz
Push-Pull Circular Connectors
Circular connectors that mate and unmate with a straight push and pull — PBH push-pull, sealed Y27 push-pull and XY1 push-in IP67 miniatures.
Push-pull connectors lock automatically when pushed in and release when the outer sleeve is pulled, so they are quick to operate in tight spaces and on portable equipment.
PBH connectors carry 5 or 7 contacts at 5 A each, with silver, silver-palladium or gold-plated contacts and vibration resistance to 5000 Hz. Y27 is our sealed push-pull family: up to 121 contacts or 250 A power contacts, 2 m immersion-proof versions and hermetic receptacles. For small sealed connectors, see our XY1 IP67 push-in miniature connectors.
Compare series
| Series | Coupling | Contacts | Current rating | Working voltage | Temperature | Test voltage |
|---|---|---|---|---|---|---|
| PBH | Push-pull | 5 or 7 | 5 A per contact | 200–300 V | −60 to +150 °C (PBH1) | |
| Y27 | Push-pull, latching | 1 to 121 | 3 to 250 A | −55 to +125 °C | 750 to 2500 V |

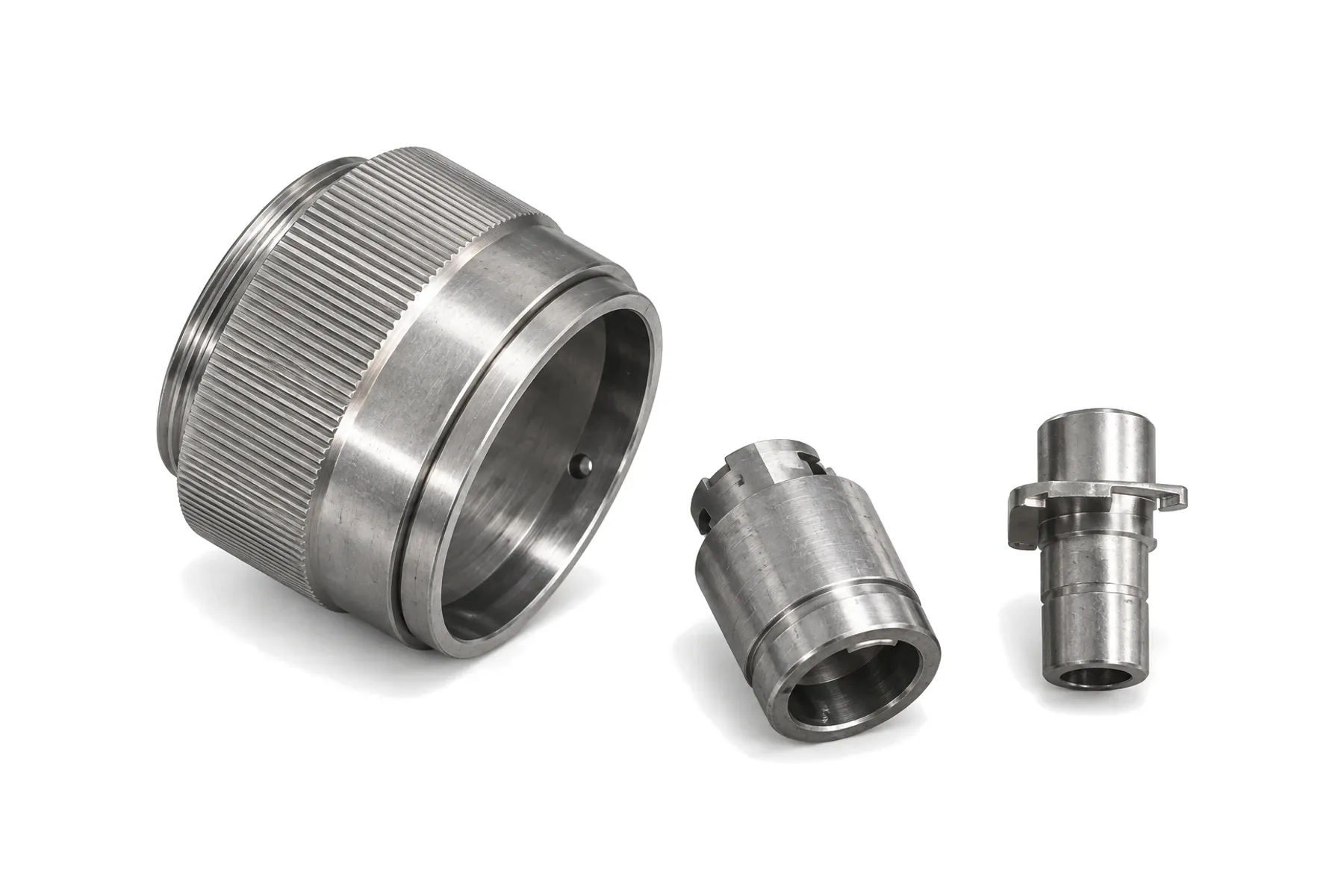

Y27 Sealed Push-Pull Circular Connectors, up to 121 Contacts
Push-pull · 1–121 contacts · 2 m immersion · hermetic receptacles
How to choose
Contacts
PBH: 5 or 7 contacts; Y27: 1 to 121 contacts; XY1: 2 to 14 contacts.
Sealing
Y27F, G and H are immersion-proof to 2 m; XY1 is sealed to IP67.
Temperature
PBH1 to +150 °C; PBH2/3 to +100 °C.
Options beyond the standard connector
XY1 IP67 push-in
Push-in miniature circular connectors, IP67.
Frequently asked questions
Do you make custom push-pull connectors?
Yes. Tell us the contact count, current and sealing requirements.
From sample to production
Send your requirements
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are built to order. The minimum order quantity is 10 pieces, and samples and production orders each take 4–8 weeks. Third-party testing to your specification is available on request.
Your approval
You test the samples in your own equipment and approve them.
Series production
Production follows the approved sample configuration, with machining, molding, plating and assembly in our own Shenyang factory.
Need a quote or a drawing?
Send your part number, pin-out or drawing. Every inquiry is acknowledged by email within 1 business day, and an engineer follows up with a matched configuration, drawing or quotation.
