FBG Flameproof Circular Connectors, Ex db IIC T6 Gb
Ex db IIC T6 Gb · flameproof · stainless steel
Explosion-Proof Circular Connectors
Flameproof and increased-safety circular connectors for oil, gas, chemical and offshore hazardous areas, with Ex component certificates to GB 3836.
In oil and gas production, refineries, chemical plants and offshore platforms, a connector must not become an ignition source for the surrounding atmosphere.
FBG connectors are flameproof (Ex db IIC T6 Gb): they contain an internal explosion. FBZ connectors use increased safety (Ex ec IIC T4 Gc) and are sealed to IP68. Both have stainless-steel shells in sizes 9 to 25 and hold Ex component certificates to the Chinese GB 3836 standards, which are aligned with IEC 60079.
Compare series
| Series | Ex marking | Protection type | Shell sizes | Shell | Salt spray | Protection |
|---|---|---|---|---|---|---|
| FBG | Ex db IIC T6 Gb | Flameproof (d) | 9 to 25 | Stainless steel | 500 h | — |
| FBZ | Ex ec IIC T4 Gc | Increased safety (e) | 9 to 25 | Stainless steel | 500 h | IP68 |

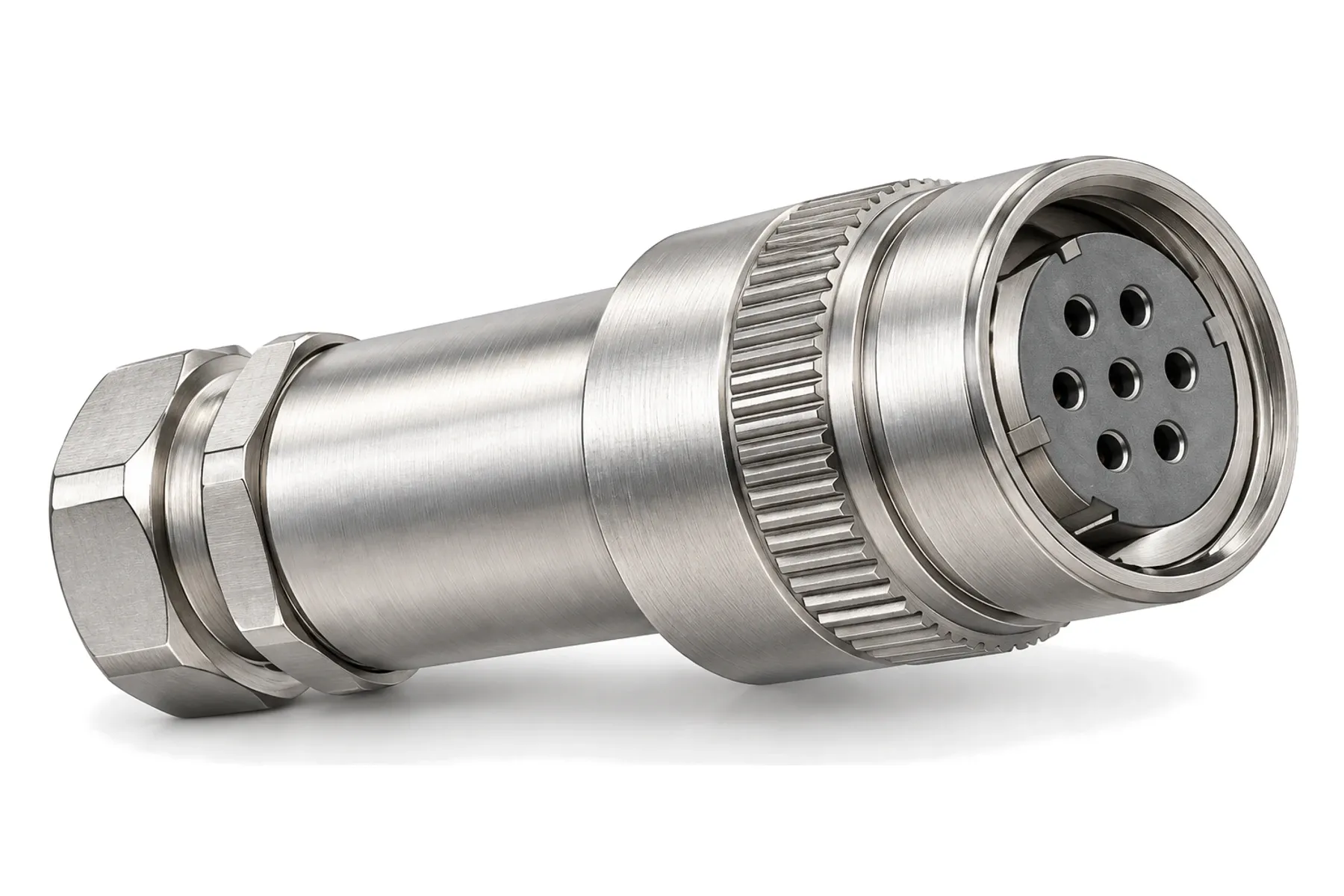

FBZ Increased-Safety Circular Connectors, Ex ec IIC T4 Gc, IP68
Ex ec IIC T4 Gc · increased safety · IP68
How to choose
Zone and protection type
FBG (Gb, flameproof) for higher-risk zones; FBZ (Gc, increased safety) where equipment protection level c is enough.
Temperature class
FBG: T6 (≤ 85 °C). FBZ: T4 (≤ 135 °C).
Water and dust
FBZ is sealed to IP68.
Certification
Both are Ex components; tell us the certification your equipment needs and we will review it.
Options beyond the standard connector
Glass-sealed for oil and gas
SHX10 watertight connectors with glass-sealed receptacles.
38999-type connectors
For non-hazardous areas.
Frequently asked questions
Do you hold ATEX or IECEx certificates?
Our explosion-proof connectors hold Ex component certificates to GB 3836, aligned with IEC 60079. Tell us which scheme your project requires and we will review it with you.
From sample to production
Send your requirement
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are made to your order. Third-party testing to your specification is available on request.
Your approval
You test the samples in your own equipment and approve them.
Series production
Production follows the approved sample configuration.
Need a quote or a drawing?
Send your part number, pin-out or drawing. An engineer will reply by email.
