SHX33 Deep-Sea Rubber-Molded Underwater Connectors, 7000 m
7000 m rated · 3 to 16 contacts · Gigabit Ethernet version
Subsea and Underwater Connectors
Rubber-molded connectors rated to 7000 m, metal-shell and glass-sealed connectors, load-bearing and hybrid connectors, and watertight cable assemblies.
Underwater connectors must keep water out under pressure, survive salt water and still be easy to mate on deck. Our range covers rubber-molded connectors for sensors and subsea power, metal-shell connectors for deep-water equipment, glass-sealed connectors for oil and gas, load-bearing connectors for towed arrays, optical-electrical hybrid connectors and watertight cable assemblies built to your length. Contact counts, cable lengths and materials can be customized.
The SHX30, SHX33, SHX34 and SHX35 rubber-molded families are rated to 7000 m operating depth, with 70 MPa pressure ratings both mated and unmated. Specifications on each page state the test condition — depth, mated or unmated pressure — separately.
For equipment that needs a metal shell, SHX4 (10 MPa mated, contacts up to 115 A), SHX13 for sonar and SHX27 for high-voltage power are made in titanium, aluminum bronze or stainless steel. SHX10 adds glass-sealed receptacles that stay gas-tight when unmated, and SM carries a 50 kN axial load through the connector for towed arrays.
Compare series
| Series | Depth | Pressure rating | Contacts | Current rating | Temperature |
|---|---|---|---|---|---|
| SHX33 | 7000 m | 70 MPa mated and unmated | 3 to 16 | 3–10 A | −40 to +60 °C |
| SHX34 | 7000 m | 70 MPa mated and unmated | 1 to 10 | 10–15 A; 250 A (1-contact) | −40 to +60 °C |
| SHX35 | 7000 m | 70 MPa mated and unmated | 2 to 8 | 5–10 A | −40 to +60 °C |
| SHX30 | 7000 m | 70 MPa mated and unmated | 2 to 8 | 5–10 A | −40 to +60 °C |
| GDM | 4.5 MPa mated | 16 or 88 power + 4 optical | 13 A (size 16), 33 A (size 10) | −10 to +65 °C | |
| SHX4 | 1000 m | 10 MPa mated | 1 to 41 | 7.5–115 A | −40 to +85 °C |
| SHX13 | 300 m | 4.5 MPa mated | 4 (others on request) | ≤ 7.5 A | −40 to +120 °C |
| SHX27 | 4.5 MPa radial and axial | 8 | 33 A main, 13 A auxiliary | −10 to +65 °C | |
| SM | 450 m | 4.5 MPa mated | 30 to 67 | 7.5–115 A | |
| SHX10 | 10 MPa mated; 5 MPa receptacle | 2 to 128 (116 layouts) | 5–46 A (sizes 22D to 8) | −40 to +120 °C | |
| Subsea cable assemblies | Up to 70 MPa | Per connector series |

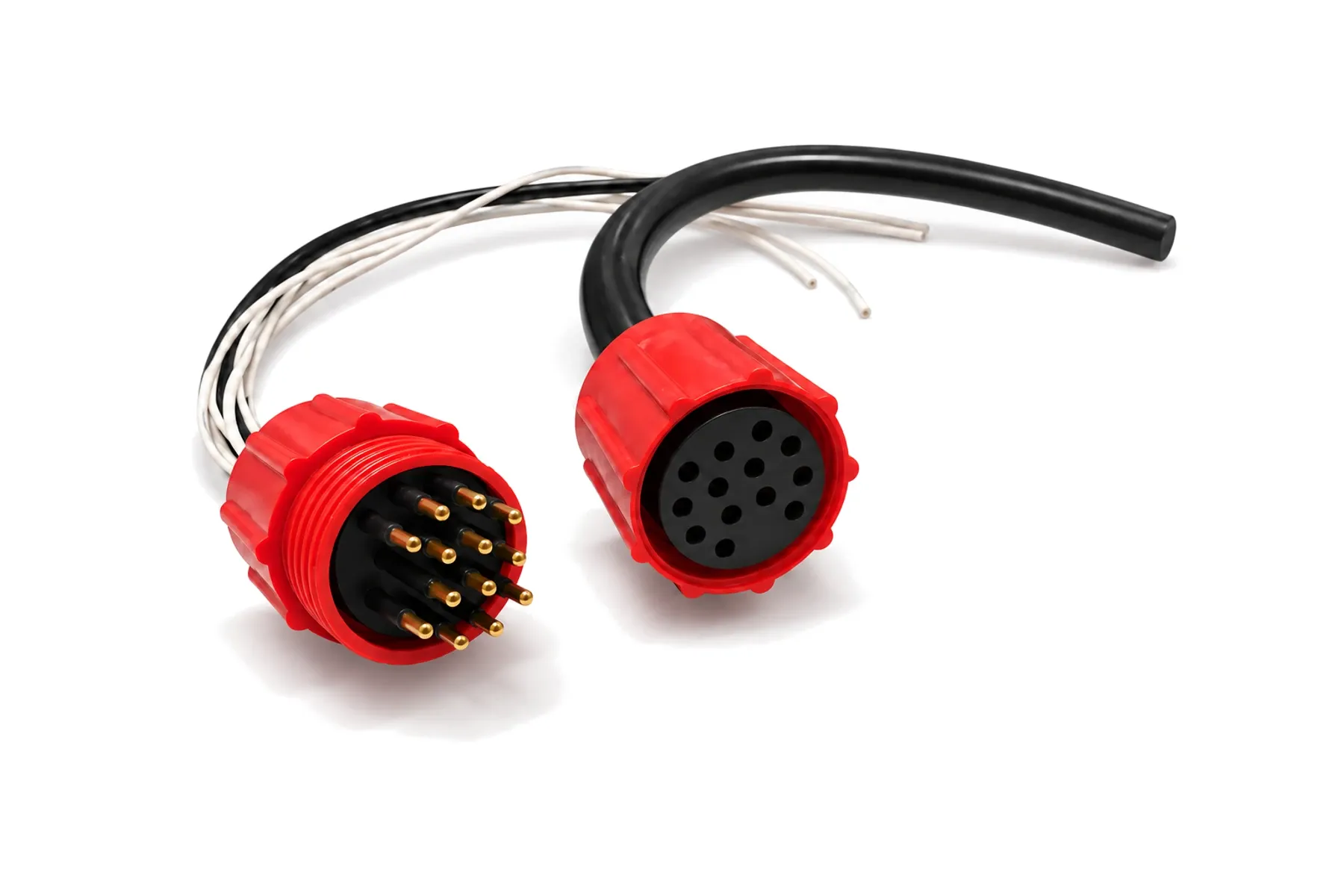

SHX34 Large Rubber-Molded Underwater Connectors, 7000 m, up to 250 A
7000 m rated · 2 to 10 contacts at 10–15 A · 1-contact 250 A power version

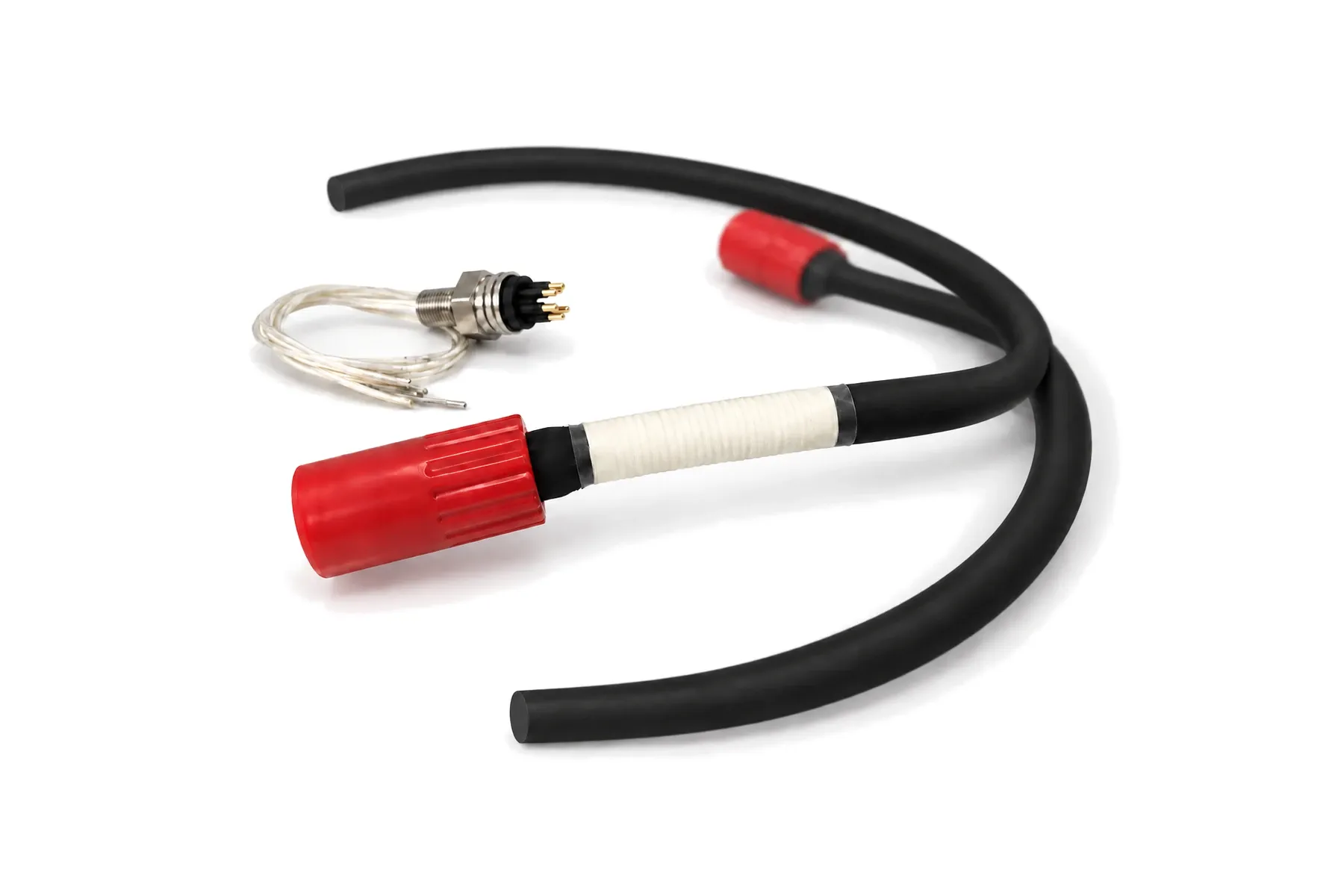

SHX35 Small Rubber-Molded Underwater Connectors, 7000 m
7000 m rated · 2 to 8 contacts · compact size

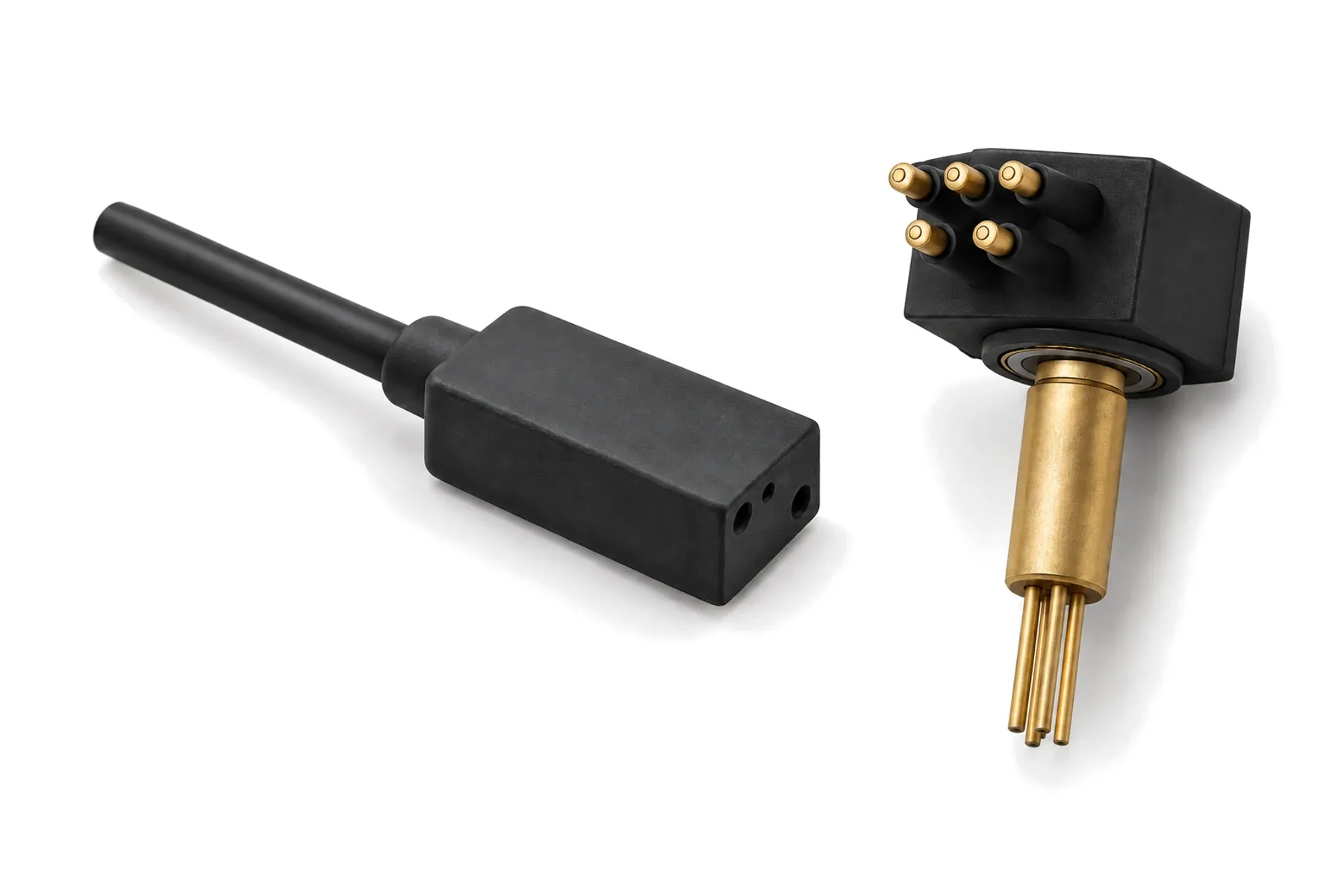

SHX30 Rectangular Rubber-Molded Underwater Connectors, 7000 m
7000 m rated · rectangular · straight or right-angle

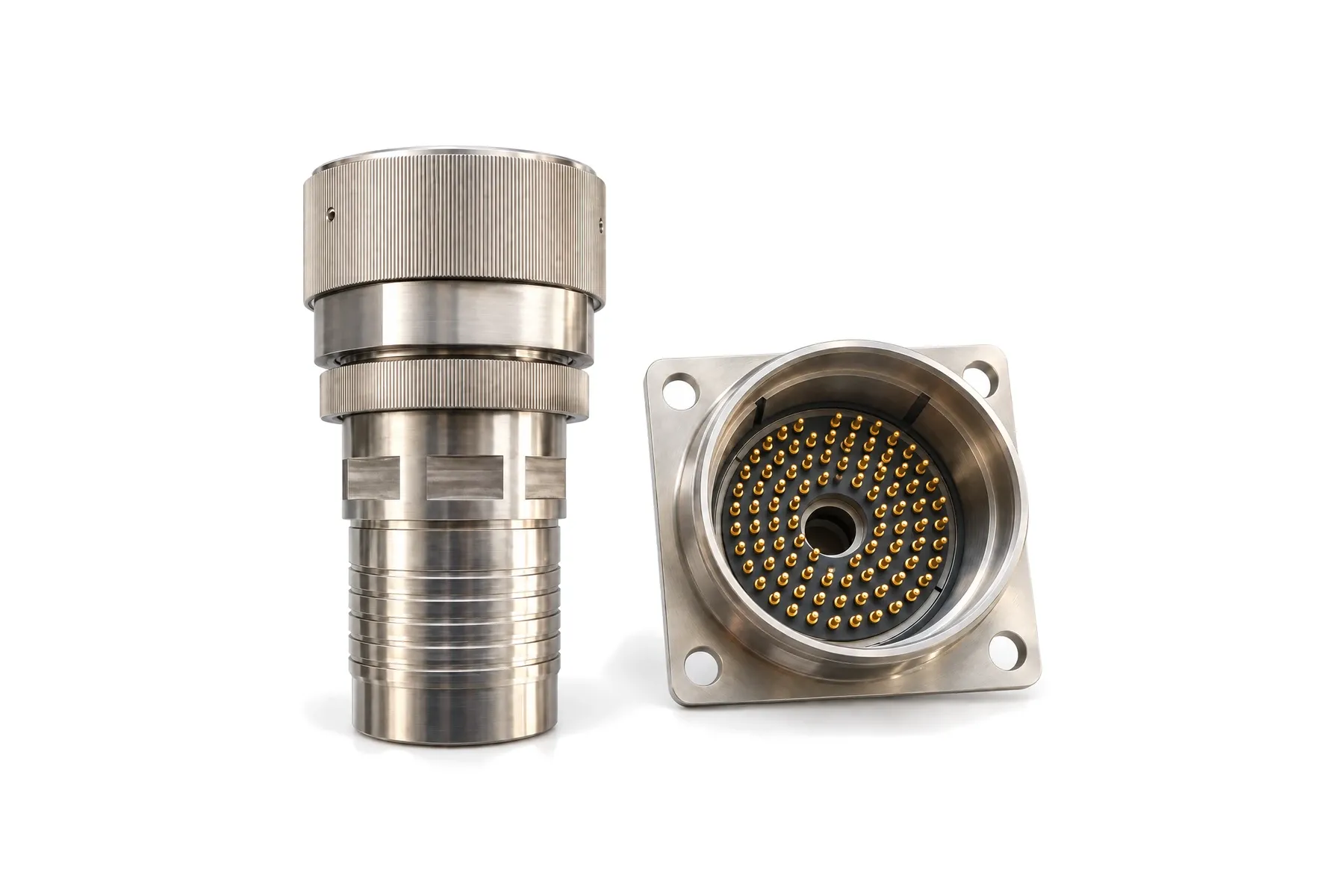

GDM Optical-Electrical Hybrid Underwater Connectors
Power + 4 optical fibers · 4.5 MPa mated · single-mode or multimode

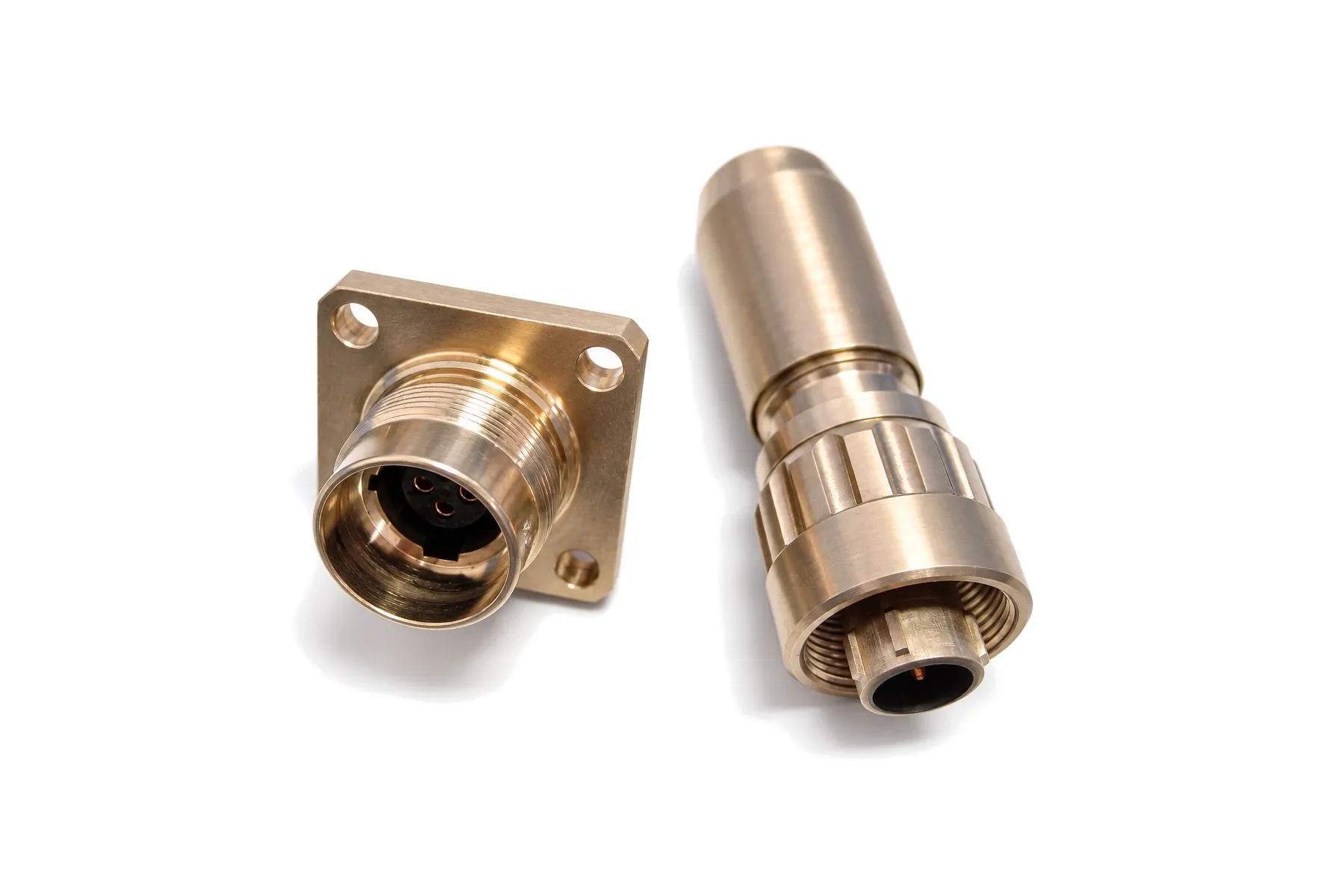

SHX4 Underwater Connectors, 10 MPa Mated, up to 115 A
1000 m water depth · 10 MPa mated · contacts up to 115 A

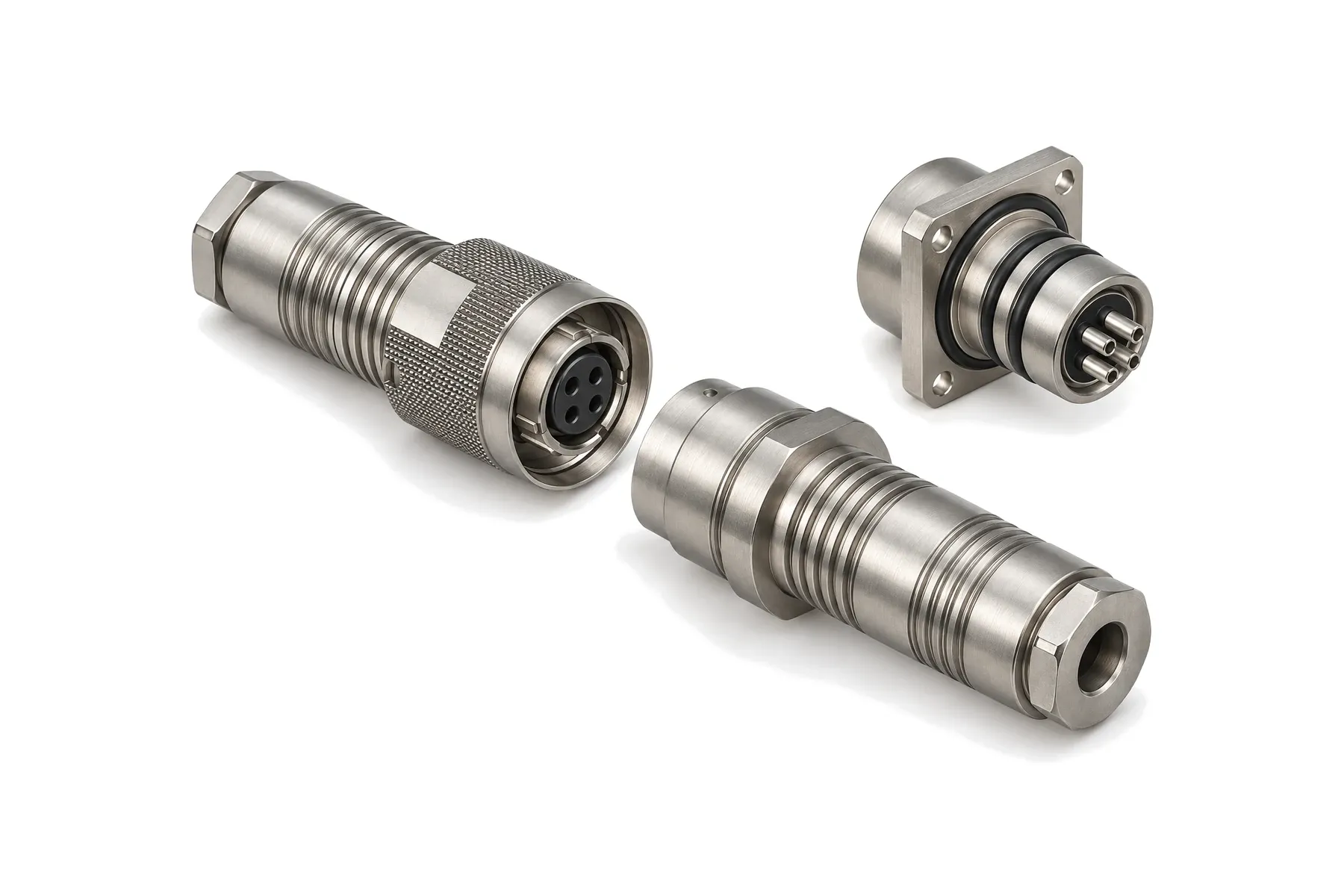

SHX13 Watertight Connectors for Sonar and Hydrophone Equipment
Sonar equipment · 300 m water depth · 4.5 MPa mated

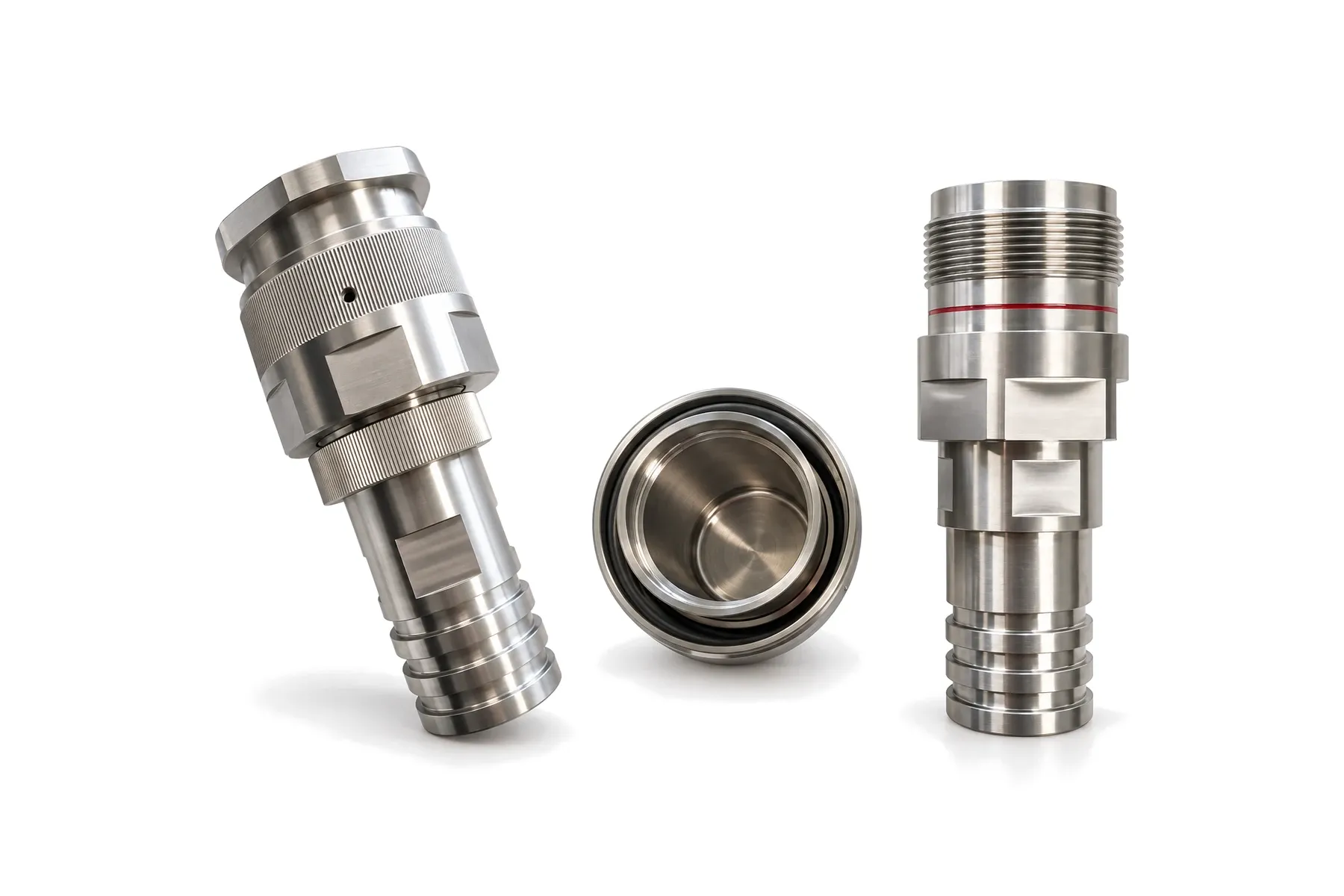

SHX27 Metal-Shell Wet-Mateable Underwater Power Connectors
High-power · 6000 VAC main contacts · 4.5 MPa

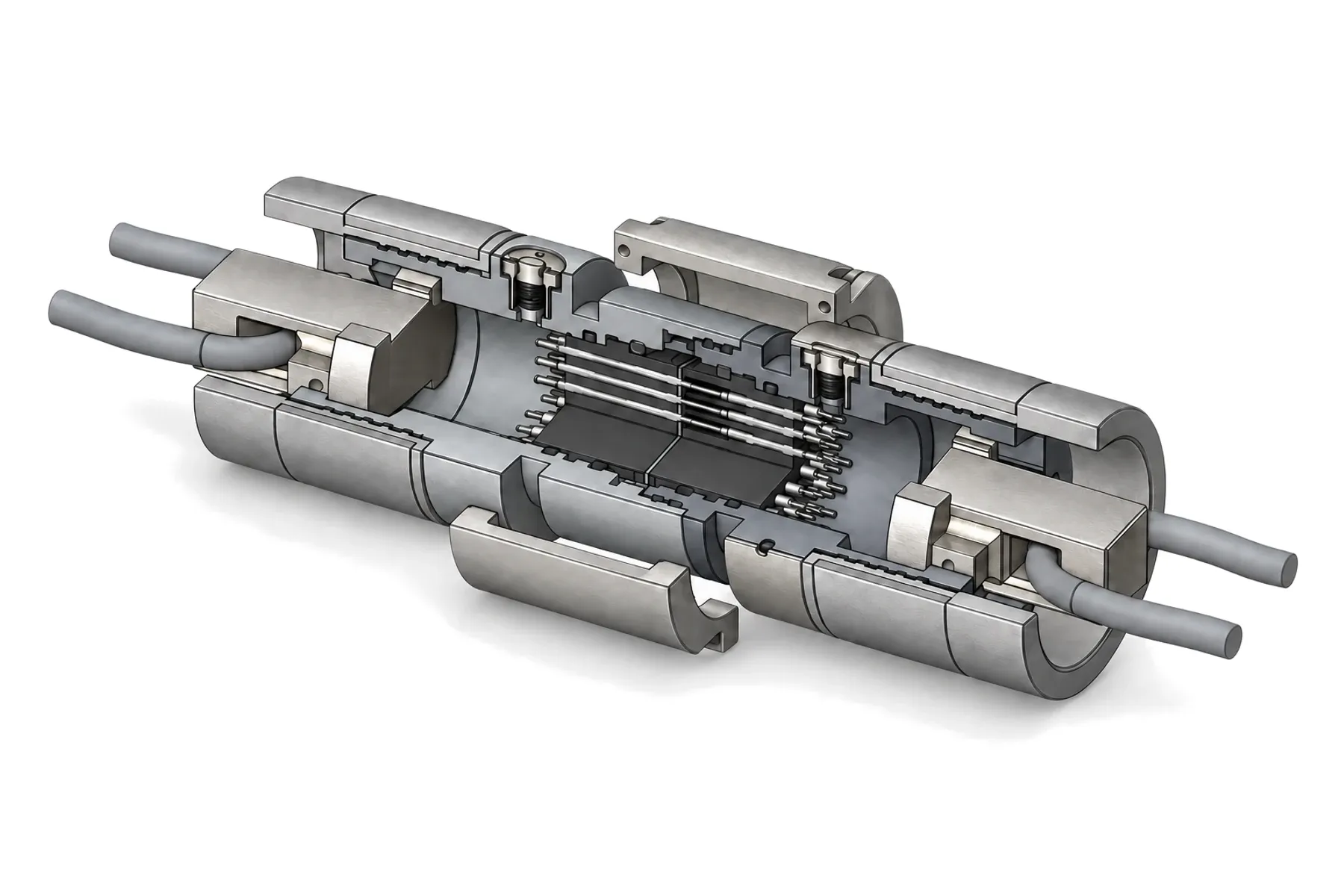

SM Load-Bearing Underwater Connectors for Towed Arrays, 50 kN
50 kN axial load · 450 m · oil-filled pressure-balanced

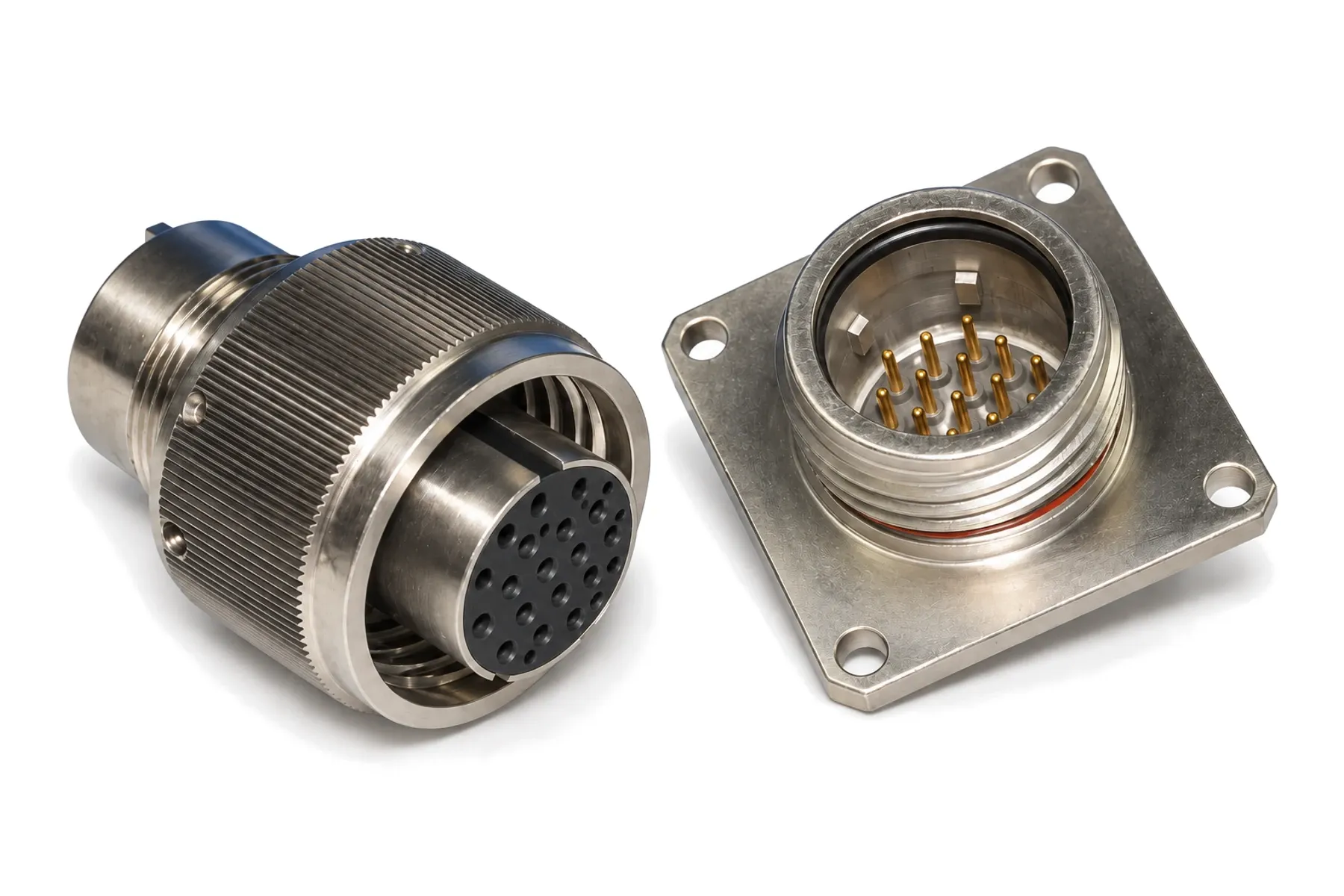

SHX10 Glass-Sealed Watertight Connectors for Oil & Gas and Marine Equipment
Glass-sealed receptacles · 10 MPa mated · 116 insert arrangements

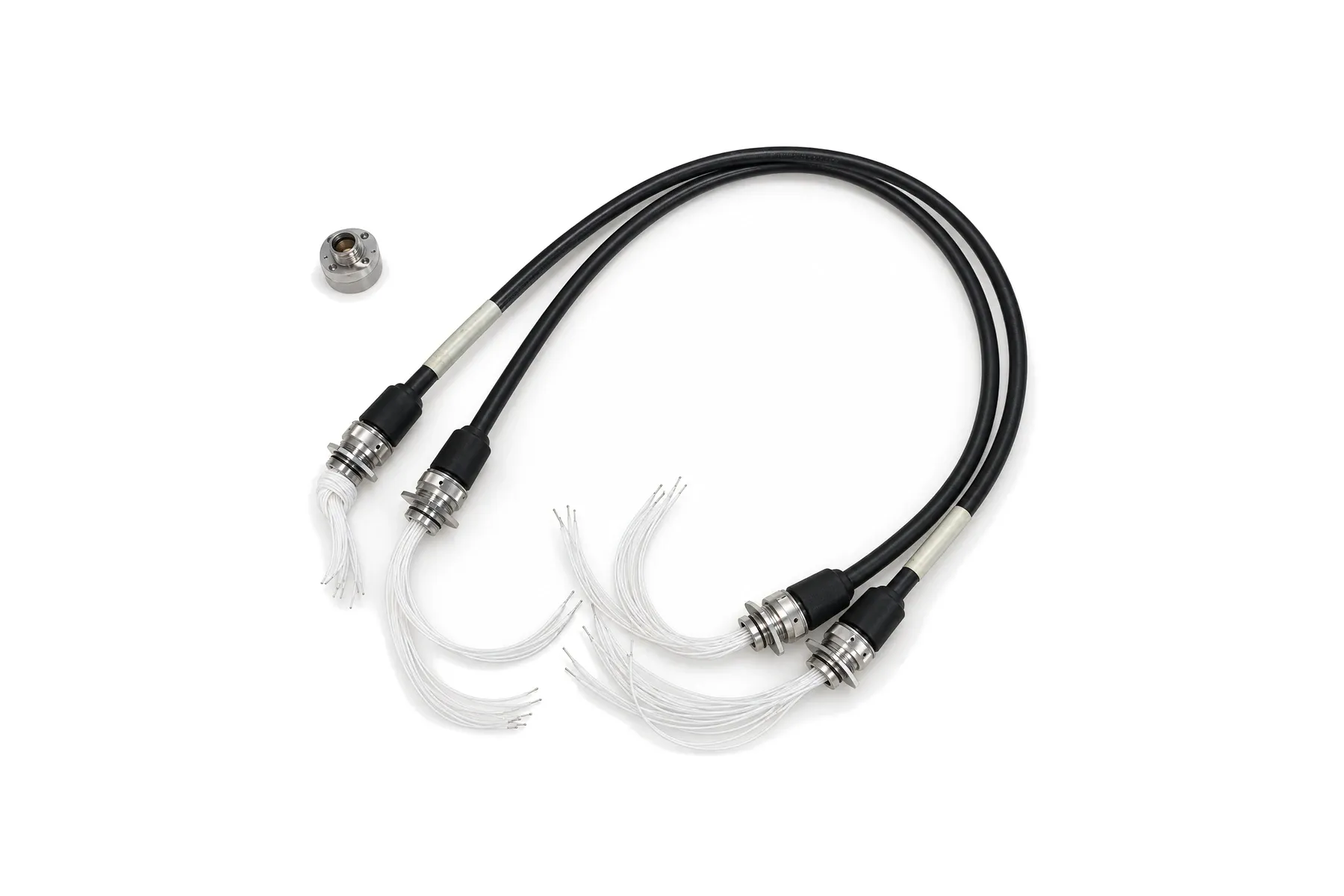

Subsea Watertight Cable Assemblies
Vulcanized to cable · up to 70 MPa · single, double and multi-ended
How to choose
Depth and pressure
Check the operating depth and whether the pressure rating you need is mated, unmated (open face) or both.
Mating condition
Wet-mateable connectors can be mated with water on the contact faces, on deck or at the surface. Mating at depth is reviewed project by project — tell us your conditions.
Contacts and current
Rubber-molded series cover 1 to 16 contacts, with a single-contact 250 A power version (SHX34); metal-shell series cover up to 128 contacts (SHX10) and up to 115 A per contact (SHX4, SM).
Power plus data
GDM combines power contacts with four single-mode or multimode optical fibers.
Cable and materials
Plugs are molded to the cable at your specified length; bulkhead receptacles are available in stainless steel or brass.
Options beyond the standard connector
Hybrid power and fiber
GDM with 4 optical channels.
Subsea power, 250 A
Single-contact SHX34 power version.
Gas-tight glass seal
SHX10 receptacles for oil and gas equipment.
Watertight cable assemblies
Connectors vulcanized to cable, as single-ended, double-ended or multi-ended assemblies.
Shipboard and deck connectors
Watertight 0.5 MPa and rain-tight marine connectors.
Frequently asked questions
What does 7000 m rated mean?
The SHX30, SHX33, SHX34 and SHX35 families are rated to 7000 m operating depth, with 70 MPa pressure ratings both mated and unmated. Each product page lists these values separately.
Can your connectors be mated underwater?
Our wet-mateable connectors can be mated with water on the contact faces, on deck or at the surface. If you need to mate or unmate at depth, tell us the depth and conditions and we will review it for your project.
Do you make custom cable assemblies?
Yes. We vulcanize connectors to the cable in the length you need — single-ended, double-ended or multi-branch. Send us the cable type, length and pin-out.
What is the lead time?
Samples typically take 4–8 weeks and production orders 4–8 weeks. Send us your requirements and we will confirm the lead time with the quotation.
From sample to production
Send your requirements
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are built to order. The minimum order quantity is 10 pieces, and samples and production orders each take 4–8 weeks. Third-party testing to your specification is available on request.
Your approval
You test the samples in your own equipment and approve them.
Series production
Production follows the approved sample configuration, with machining, molding, plating and assembly in our own Shenyang factory.
Need a quote or a drawing?
Send your part number, pin-out or drawing. Every inquiry is acknowledged by email within 1 business day, and an engineer follows up with a matched configuration, drawing or quotation.
