SHX15 Watertight Threaded Circular Connectors, Stainless Steel
0.5 MPa mated · stainless steel · contacts up to 40 A
Marine and Shipboard Connectors
Watertight and corrosion-resistant circular connectors for shipboard, deck and offshore equipment.
Shipboard equipment faces salt spray, rain, wash-down and short immersion rather than deep water. Our marine connectors combine corrosion-resistant shells — stainless steel, aluminum bronze, nickel-plated copper alloy — with sealing matched to the location.
SHX15 and SHX16 are watertight to 0.5 MPa when mated; SHX16 keeps 38999-type insert arrangements. YMG is a rain-tight bayonet connector with hyperboloid sockets; XCA is a bayonet connector with hyperboloid sockets, 1 to 62 contacts and glass-sealed receptacles, tested for 240 h acid salt spray. For standard 38999-type interfaces, the J599 Series III and GJB 599 Series I and II marine-environment versions use stainless-steel or titanium shells. For deep water, see our 7000 m rated subsea connectors. Contact counts, cable lengths and materials can be customized.
Compare series
| Series | Mated hydrostatic pressure | Current rating | Temperature | Salt spray | Coupling | Contacts |
|---|---|---|---|---|---|---|
| SHX15 | 0.5 MPa | 5–40 A | −40 to +120 °C | 500 h | — | — |
| SHX16 | 0.5 MPa | — | −40 to +120 °C | 48–1000 h | — | — |
| YMG | — | 3–50 A | −55 to +200 °C | — | Bayonet | 3 to 62 |
| XCA | — | — | −55 to +150 °C | — | Bayonet, keyed | 1 to 62 per connector |
SHX16 Watertight 38999-Type Circular Connectors
38999 type · 0.5 MPa mated · 126 insert arrangements

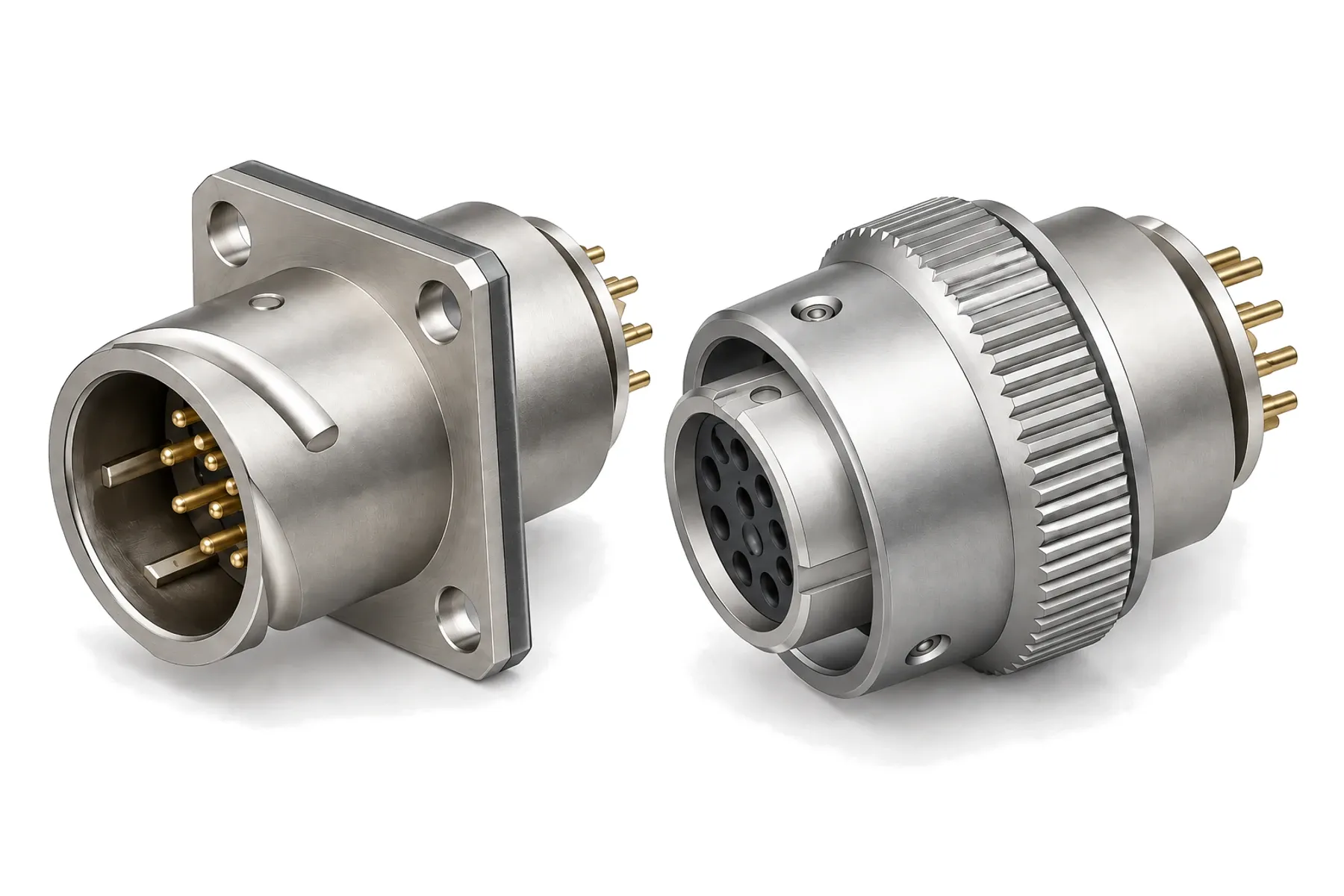

YMG Marine Corrosion-Resistant Bayonet Circular Connectors
Bayonet coupling · hyperboloid sockets · 3 to 62 contacts
XCA Marine Bayonet Connectors with Hyperboloid Contacts
Bayonet · hyperboloid sockets · 1–62 contacts · 240 h acid salt spray
How to choose
Sealing level
Rain-tight (YMG) for decks and enclosures; watertight to 0.5 MPa mated (SHX15, SHX16) for splash zones and short immersion; subsea connectors for deep water.
Shell material
Stainless steel or aluminum bronze for the highest salt-spray resistance (500–1000 h); nickel-plated aluminum where weight matters.
Coupling
Threaded (SHX15, SHX16, 38999 types) for vibration and sealing; bayonet (YMG, XCA) for quick mating.
Cable sealing
Watertight mechanical backshells with 360° shielding, potted backshells and sealing caps for unmated connectors.
Options beyond the standard connector
38999-type marine versions
J599 Series III and GJB 599 Series I and II in stainless steel or titanium, rated for acid salt spray.
Deep-sea connectors, 7000 m
SHX33/34/35 rubber-molded connectors.
Cadmium-free 38999 type
J599WR with acid salt spray testing.
Frequently asked questions
What is the difference between marine and subsea connectors?
Marine connectors are for shipboard and offshore equipment — salt spray, rain and short immersion (SHX15/16 are watertight to 0.5 MPa mated). Subsea connectors such as SHX33/34/35 are rated for deep water, up to 7000 m.
Which marine connector has 38999-type insert arrangements?
SHX16, with 126 insert arrangements and a hermetic receptacle option.
From sample to production
Send your requirement
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are made to your order. Third-party testing to your specification is available on request.
Your approval
You test the samples in your own equipment and approve them.
Series production
Production follows the approved sample configuration.
