Test systems and fixtures
CZ4 combines contact modules in one frame, DMK closes with a cam and POGO presses spring pins onto pads; all three serve test and measurement equipment.
Connectors for Test and Measurement Equipment
Test systems and fixtures are mated many times a day and must keep contact resistance stable across thousands of cycles.
CZ4 modular connectors reach 15,000 cycles, DMK zero-insertion-force connectors and POGO spring pins 10,000; HJ30J high-speed Micro-D and J30JZ twist-pin connectors handle dense signal interfaces.
At a glance
- 15,000
CZ4 quick-lock mating cycles; 5,000 threaded
- 10,000
DMK cam-actuated and POGO spring-pin mating cycles
- 100 ± 15 Ω
HJ30J differential impedance, with ground contacts between pairs
- 20,000
J30JZ twist-pin mating cycles, at about 40 % of J30J volume
Where they are used
Dense instrument and data interfaces
HJ30J carries differential signals in a Micro-D format; J30JZ and J29 give compact twist-pin connections with cable and PCB terminations.
Portable and laboratory instruments
PBH serves portable and laboratory equipment with straight push-pull mating; Y27 serves portable instruments and automated test equipment with a latching push-pull.
What the connectors must handle
Mating life
CZ4 reaches 15,000 cycles with its quick-lock and 5,000 threaded; DMK and POGO reach 10,000; J30JZ up to 20,000.
Power and signal in one frame
CZ4 modules hold 2, 4, 5, 10 or 45 contacts from 1 A to 50 A; the 2-contact high-voltage module withstands 6000 VAC.
High pin counts, low insertion force
DMK covers 60, 96, 156 and 260 contacts on a 2.54 mm grid. A cam closes the contacts after the halves are brought together.
Differential signals
HJ30J is specified at 100 ± 15 Ω, with 1.65 Gbps over cable and 3.125 Gbps PCB to PCB.
Spring pins
POGO pins have a 2.54 mm pitch and 0.8 mm stroke in single- or double-row layouts, and press on flat target pads at 1 A.
Temperature and handling
PBH1 runs from −60 to +150 °C at 5 A per contact; PBH2 and PBH3 run from −60 to +100 °C.
Compare the series
Test interface options
Swipe left or right to see all columns.
| Series | Contact configuration | Current | Temperature | Mating cycles or data rate | Datasheet |
|---|---|---|---|---|---|
| CZ4 | Modules of 2, 4, 5, 10, 45 | 1–50 A | −55 to +125 °C | 15,000 (quick-lock) / 5,000 (threaded) | PDF, 145 KB |
| DMK | 60, 96, 156, 260 | 5 A | −55 to +105 °C | 10,000 | PDF, 142 KB |
| POGO | 1–20 (single row), 1–10 per row (double) | 1 A | −55 to +125 °C | 10,000 | PDF, 140 KB |
| J30JZ | 9 to 100 | 3 A | −55 to +125 °C | Up to 20,000 | PDF, 212 KB |
| HJ30J | 12 to 100 | 3 A | −55 to +125 °C | 1.65 Gbps (cable) / 3.125 Gbps (PCB to PCB) | PDF, 193 KB |
How to choose
Define the circuits
List power and signal positions with current and working voltage; for differential links, mark the pairs and grounds.
Choose the handling method
Give the cycle count and how the fixture is loaded: quick-lock, cam, spring pins on pads or push-pull.
Lay out the termination
Send the PCB drawing or cable pin-out. J30JZ offers pre-wired, solder-cup, straight and right-angle PCB terminations; DMK offers crimp contacts or PCB tails; POGO has surface-mount tails.
Send the full interface
Send the model or drawing with locking hardware and contact layout, and we will review your project.
Recommended series
CZ4 Modular Rectangular Connectors, up to 15,000 Mating Cycles
Modular · 1–50 A contacts · 15,000 cycles quick-lock
DMK Zero-Insertion-Force Rectangular Connectors, 10,000 Cycles
Zero insertion force · 60–260 contacts · 10,000 cycles
POGO Spring-Pin Connectors, 10,000 Cycles
Spring pins · 10,000 cycles · surface mount
HJ30J High-Speed Micro-D Connectors
100 Ω differential pairs · up to 3.125 Gbps board-to-board

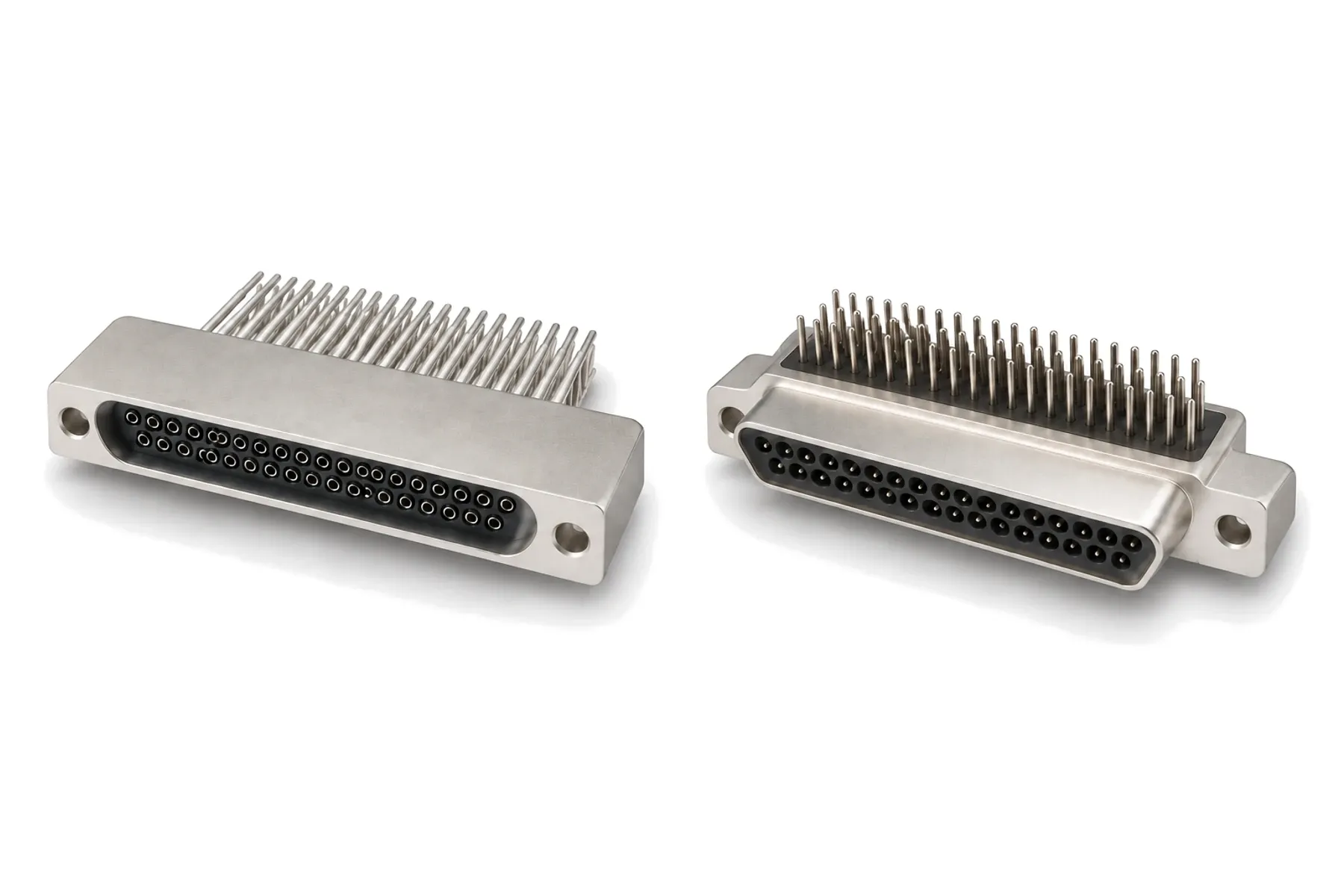

J30JZ Twist-Pin Micro-D Connectors, Compact and Long-Life
Twist-pin contacts · ≈ 40 % of J30J volume · 9 to 100 contacts
PBH Push-Pull Circular Connectors, 5 and 7 Contacts
Push-pull · 5 or 7 contacts · vibration to 5000 Hz
Y27 Sealed Push-Pull Circular Connectors, up to 121 Contacts
Push-pull · 1–121 contacts · 2 m immersion · hermetic receptacles
J29 Twist-Pin Micro-Rectangular Connectors, 1.91 mm Pitch
Twist-pin contacts · 1.91 × 1.65 mm grid · 9–66 contacts · 5 A
All series can be customized — contact counts, cable lengths, materials and finishes.
Related guides
Micro-D vs Nano-D Connectors: How to Choose
Micro-D (1.27 mm pitch) vs Nano-D (0.635 mm pitch) connectors: differences in current, contact count, mating cycles and variants, and how to choose.
What Is a Twist-Pin Contact?
How twist-pin contacts work, why Micro-D and Nano-D connectors use them, and what they mean for contact resistance, vibration resistance and mating life.
From Inquiry to Series Production: Samples and Qualification
How a custom connector moves from inquiry to series production: configuration, quotation, samples, third-party tests and approval.
FAQ
How many mating cycles do CZ4 connectors last?
15,000 with the central 180° quick-lock and 5,000 with the threaded lock.
How does DMK reduce insertion force?
The plug and receptacle meet with almost no force, then a cam closes the contact springs. DMK covers 60, 96, 156 and 260 contacts and lasts 10,000 cycles.
What does a POGO pin mate against?
Flat target pads. POGO has a 2.54 mm pitch, 0.8 mm stroke, 1 A per pin and 10,000 cycles.
What data rates does HJ30J support?
1.65 Gbps with cable termination and 3.125 Gbps PCB to PCB, at 100 ± 15 Ω differential impedance.
Can you match an existing test interface?
Yes. Send the complete part number, pin-out, mounting drawing and test requirements, and we will review your project.
From sample to production
Send your requirements
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are built to order. The minimum order quantity is 10 pieces, and samples and production orders each take 4–8 weeks. Third-party testing to your specification is available on request.
Your approval
You test the samples in your own equipment and approve them.
Series production
Production follows the approved sample configuration, with machining, molding, plating and assembly in our own Shenyang factory.
