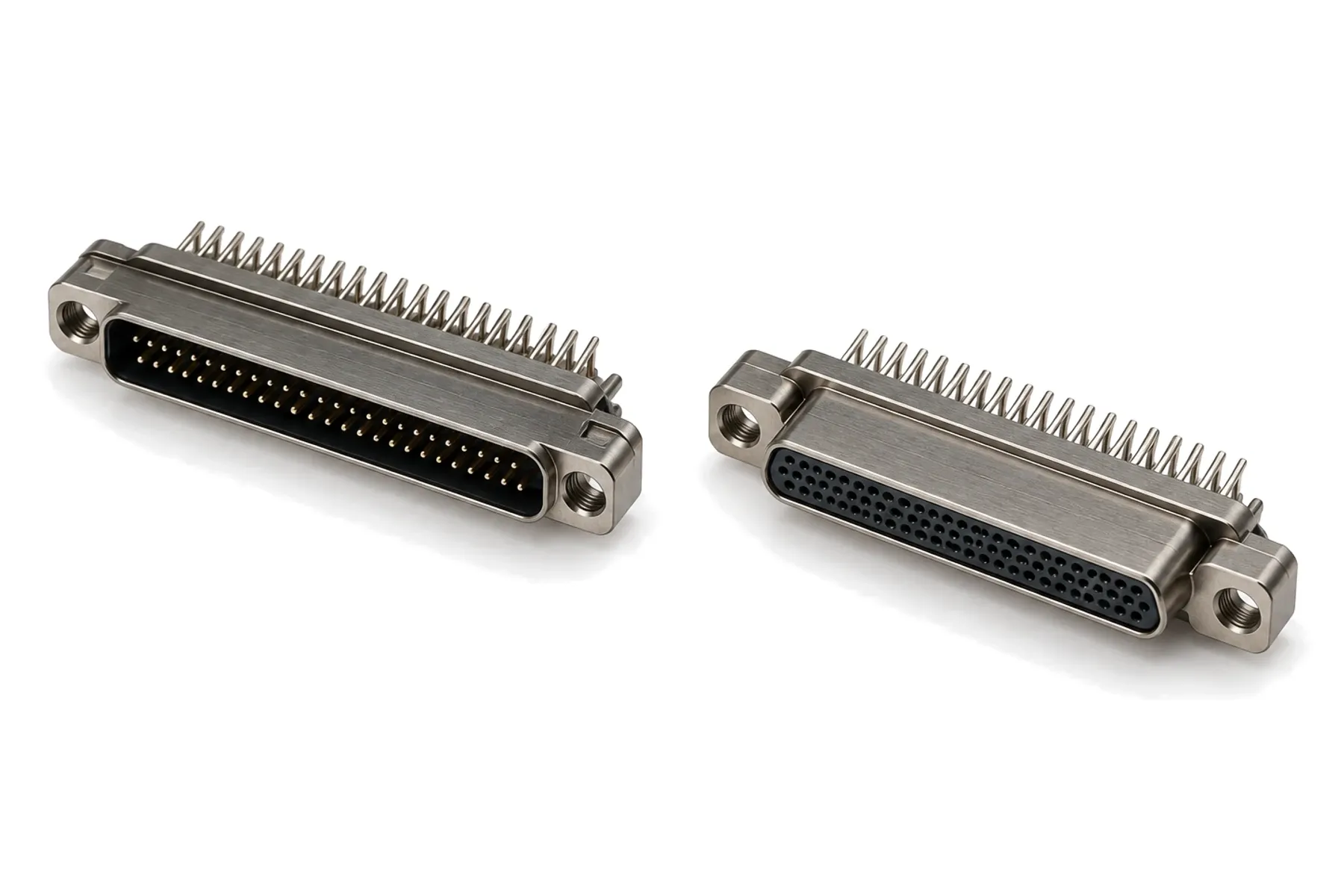

J30JZ Twist-Pin Micro-D Connectors, Compact and Long-Life
Twist-pin contacts · ≈ 40 % of J30J volume · 9 to 100 contacts
J30JZ is a compact Micro-D connector built to GJB 2446 (the Chinese counterpart of MIL-DTL-83513) with gold-plated twist-pin contacts. Each pin contacts the socket at multiple points for high contact reliability and long mating life. It is about 40 % of the volume of a standard J30J connector of the same contact count.
- Pitch
- 1.27 mm
- Contacts
- 9 to 100
- Current rating
- 3 A
- Temperature
- −55 to +125 °C
- Mating cycles
- Up to 20,000
Request a quoteRequest drawingDownload datasheet (PDF)PDF, 212 KB
Key features
- Gold-plated twist-pin contacts with multiple contact points per pin
- About 40 % of the volume of J30J: at least 5 mm shorter, 2.9 mm narrower and 2 mm lower
- Low insertion force version J30JZ/X
- 1.27 mm pitch; 9, 15, 21, 25, 31, 37, 51, 66, 74 and 100 contacts
- Crimp (pre-wired), solder-cup, straight PCB and right-angle PCB terminations
- Free-end, vertical-mount and horizontal-mount shells; mounting-screw or jackscrew hardware
Specifications
| Parameter | Value | Condition |
|---|---|---|
| Current rating | 3 A | |
| Contact resistance | ≤ 20 mΩ | |
| Dielectric withstanding voltage | 600 V | Standard conditions |
| Insulation resistance | ≥ 5000 MΩ / ≥ 1000 MΩ | Room temperature / humidity |
| Parameter | Value | Condition |
|---|---|---|
| Contact pitch | 1.27 mm | |
| Durability | Up to 20,000 mating cycles | |
| Vibration | 10–2000 Hz, 196 m/s² | |
| Shock | 735 m/s², 11 ms | |
| Operating temperature | −55 to +125 °C | |
| Wire size (crimp) | 0.1–0.15 mm² | 0.07 mm² on request |
GJB 2446 — Chinese specification for Micro-D connectors, the counterpart of MIL-DTL-83513.
Parameters not listed above — for example vibration level, leak rate or other environmental tests — can be tested to your requirements, including third-party testing.
Versions
| Series code | Version | Notes |
|---|---|---|
| J30JZ/X…TJ | Plug, pin contacts, low insertion force | |
| J30JZ…ZK | Receptacle, socket contacts | |
| …P… / …L… | Vertical-mount / horizontal-mount shell | |
| J30JZ-P01, -P02 | Mounting hardware, fixed end | |
| J30JZ-L01, -L02 | Jackscrew hardware, free end |
How to order
J30JZ(/X) [shell] [finish] [contacts] [TJ/ZK] [termination] [hardware]
Example: J30JZ/XN25TJCAL01 — Low insertion force, free-end plug, aluminum with nickel, 25 contacts, pin contacts, crimp, with jackscrews
| Code segment | Options |
|---|---|
| Series | |
| Shell | |
| Finish | |
| Contacts | |
| Contact | |
| Termination | |
| Hardware |
State wire size, length and color in your inquiry for pre-wired versions.
Contact counts and terminations
Standard contact counts
- 9
- 15
- 21
- 25
- 31
- 37
- 51
- 66
- 74
- 100
Terminations
- Crimp (pre-wired)
- Solder cup
- Straight PCB
- Right-angle PCB
Typical applications
- High-density electronics and control units
- Satellite ground and communication equipment
- Test and measurement
- Industrial robots
- Medical and laboratory instruments
Frequently asked questions
What is a twist-pin contact?
A twist-pin is a pin made of twisted gold-plated wire strands. It springs against the socket wall at several points, so the contact stays reliable under vibration and over many mating cycles.
How much smaller is J30JZ than J30J?
About 40 % of the volume of a J30J connector with the same number of contacts: at least 5 mm shorter, 2.9 mm narrower and 2 mm lower.
Can you match my MIL-DTL-83513 part numbers with J30JZ?
J30JZ is built to GJB 2446, the counterpart of MIL-DTL-83513. Send us your part number and we will propose the matching configuration and samples for your mating test.
