J30J Metal-Shell Micro-D Connectors
1.27 mm pitch · 5 to 144 contacts · twist-pin contacts
J30J is our standard metal-shell Micro-D connector. Gold-plated twist-pin contacts on a 1.27 mm grid give a high contact count in a small, light connector that keeps reliable contact under vibration and shock.
- Pitch
- 1.27 mm
- Contacts
- 5 to 144
- Current rating
- 3 A
- Temperature
- −55 to +125 °C
- Mating cycles
- 500
Key features
- Gold-plated twist-pin contacts with seven contact points each
- Built to GJB 2446, the Chinese counterpart of MIL-DTL-83513
- Aluminum, stainless-steel or nickel-plated phosphor-bronze shells
- Potted-sealed and glass-sealed (hermetic) versions
- Crimp contacts for 0.035–0.15 mm² wire; pre-wired to your length and colors
- Custom configurations and pre-wired assemblies to your drawing
- Cost-optimized -LC crimp versions for cable assemblies: metal shell (9–100 contacts) or plastic shell (9–51 contacts)
Specifications
| Parameter | Value | Condition |
|---|---|---|
| Current rating | 3 A | |
| Dielectric withstanding voltage | 800 VAC | Sea level (101.3 kPa) |
| Dielectric withstanding voltage | 150 VAC | Low pressure (4.39 kPa) |
| Insulation resistance | ≥ 5000 MΩ | Initial |
| Insulation resistance | ≥ 1000 MΩ | After 24 h humidity pre-conditioning |
| Insulation resistance | ≥ 1 MΩ | After humidity test |
| Contact resistance | ≤ 10 mΩ | Before durability test, excluding wire |
| Contact resistance | ≤ 20 mΩ | After durability test, excluding wire |
| Low-level contact resistance | ≤ 32 mΩ | Excluding wire |
| Parameter | Value | Condition |
|---|---|---|
| Contact pitch | 1.27 mm | |
| Contact engaging force | ≤ 1.68 N | Per contact |
| Contact separating force | ≥ 0.14 N | Per contact |
| Connector mating force | ≤ 2.8 N × n | n = number of contacts |
| Connector separating force | ≥ 0.14 N × n | n = number of contacts |
| Durability | 500 mating cycles | |
| Wire size (crimp) | 0.035–0.15 mm² | 0.1–0.15 mm² recommended |
| Parameter | Value | Condition |
|---|---|---|
| Operating temperature | −55 to +125 °C | |
| Vibration | 10–2000 Hz | Acceleration tested to your requirements |
| Shock | 735 m/s² | |
| Acceleration | 735 m/s² | |
| Salt spray | 1000 h | Stainless-steel shell |
| Salt spray | 48 h | Aluminum-alloy shell |
| Mould resistance | Grade 2 | GJB 150.10A-2009 |
| Leak rate (M1 glass-sealed) | Tested to your requirements |
| Parameter | Value | Condition |
|---|---|---|
| Rated current | 3 A | |
| Withstanding voltage | 800 VAC at sea level, 150 VAC at 4.39 kPa | |
| Contact resistance | 30 mΩ | |
| Insulation resistance | ≥ 5000 MΩ / ≥ 100 MΩ / ≥ 1 MΩ | Normal / steady damp heat / cyclic damp heat |
| Vibration / shock | 10–2000 Hz, 196 m/s² / 735 m/s² | |
| Salt spray | 1000 h stainless shell, 48 h aluminum or composite | |
| Wire | 0.035–0.15 mm² (0.1–0.15 mm² recommended) |
GJB 2446 — General specification for shell-located subminiature rectangular connectors — the Chinese counterpart of MIL-DTL-83513.
Values not listed above — for example vibration level, leak rate or other environmental tests — can be tested to your requirements, including third-party testing. Specifications are subject to change; contact us for the current datasheet.
Versions
| Series code | Version | Notes |
|---|---|---|
| J30J | Standard metal-shell Micro-D | |

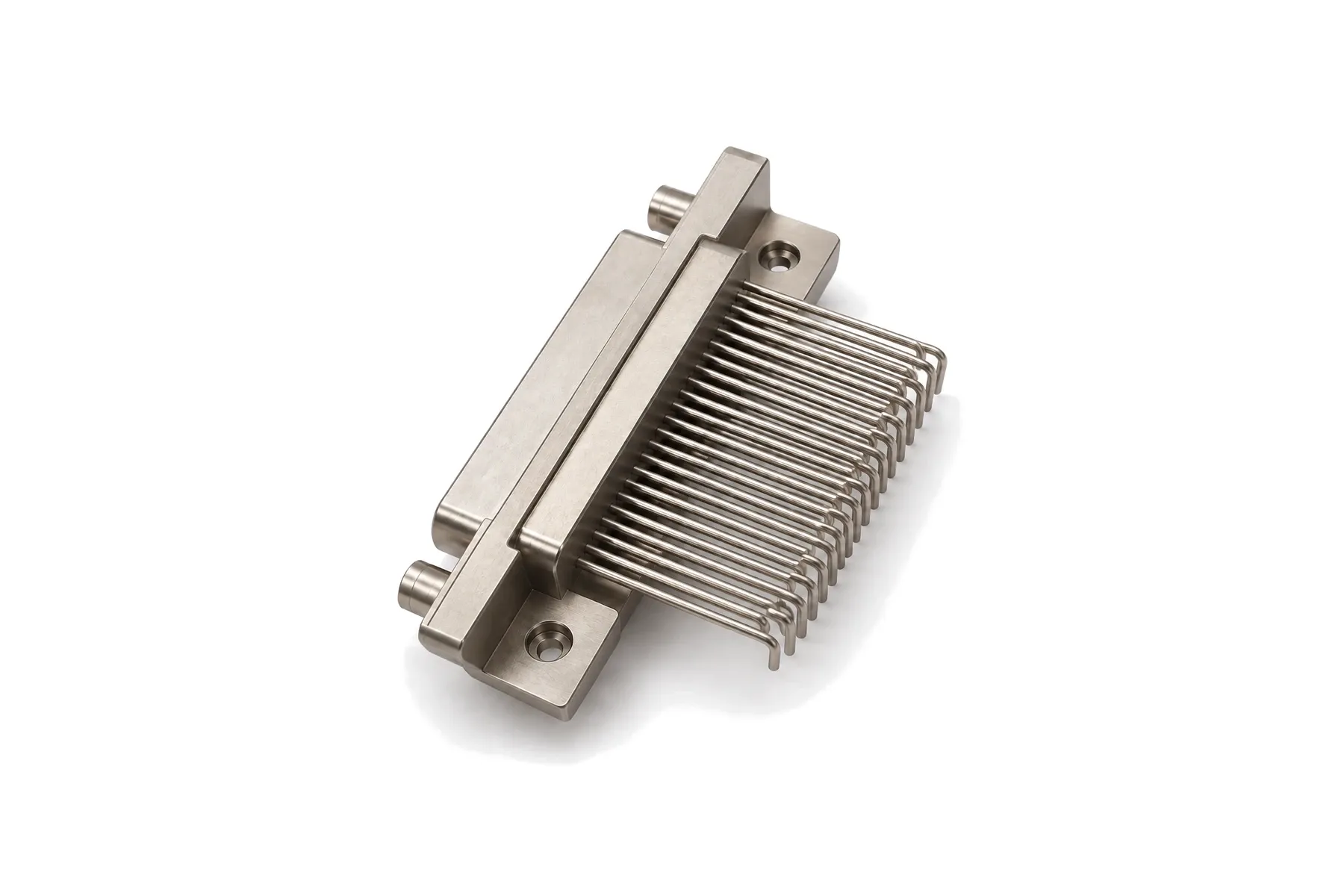

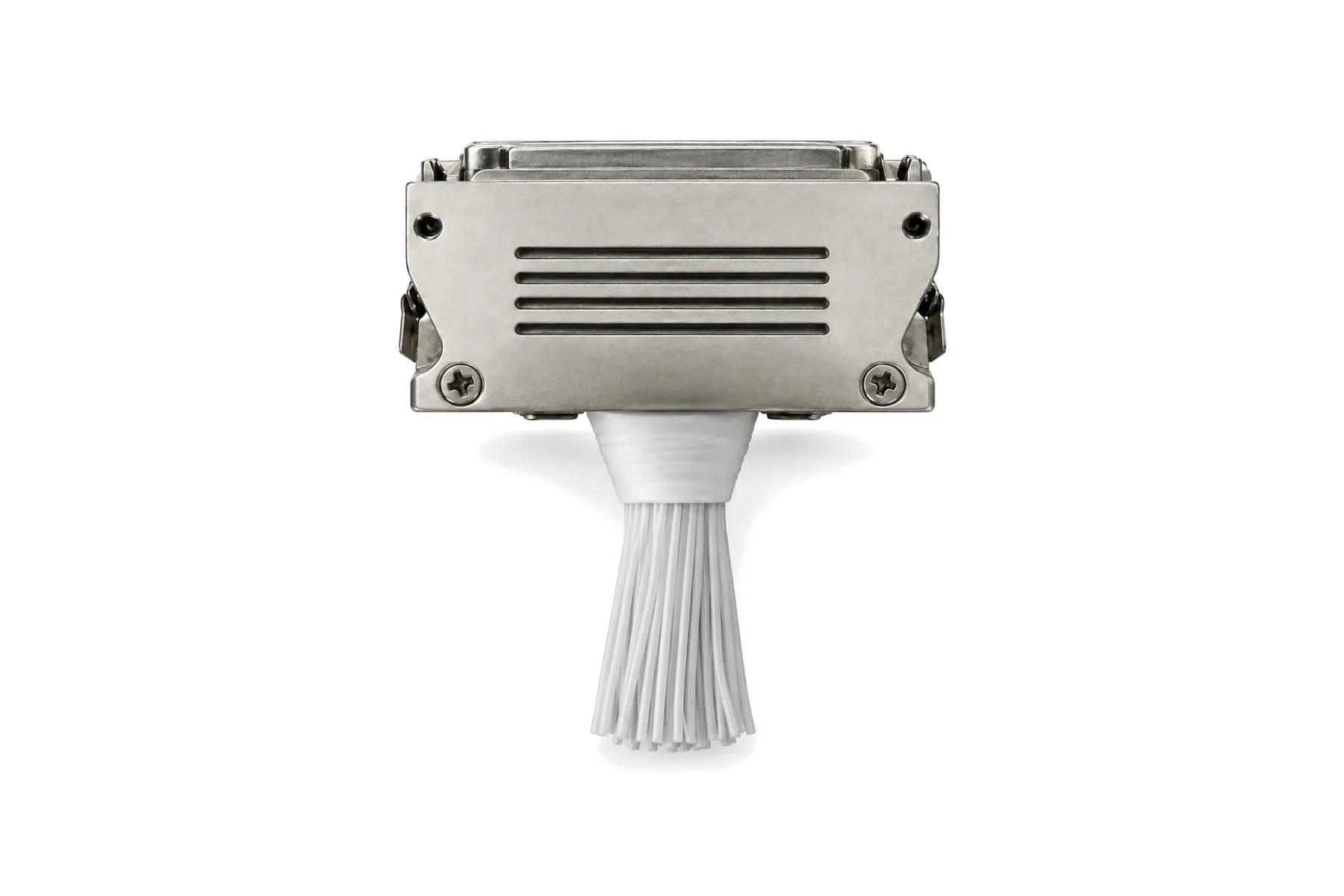

| J30J-…-LC | Cost-optimized crimp version, electroless-nickel metal shell | 9 to 100 contacts, 3 A, 800 VAC; -A-LC adds a straight cable clamp and metal shielding sleeve |

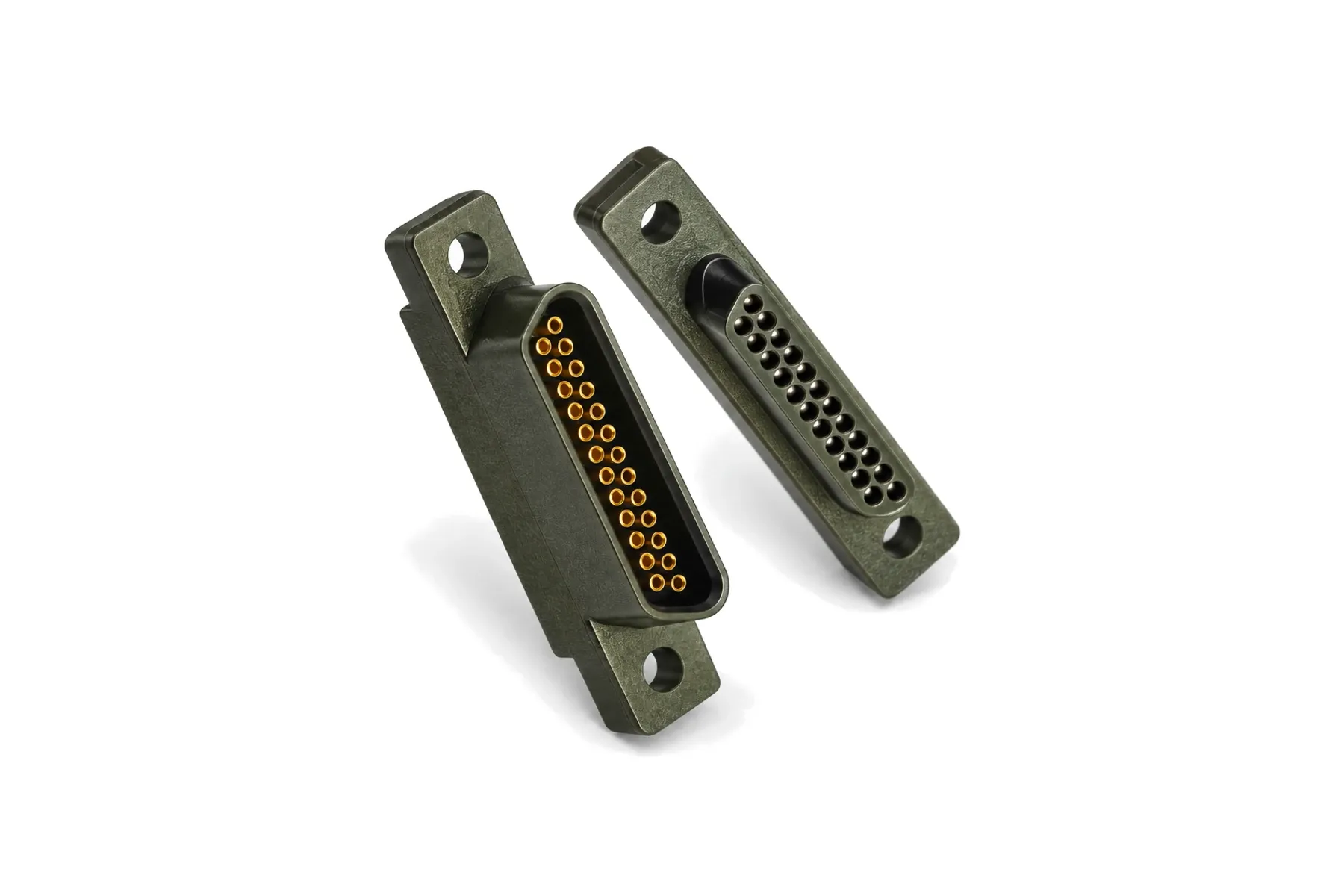

| J30-…-LC | Cost-optimized plastic-shell crimp version | 9 to 51 contacts, 3 A, 800 VAC |
How to order
J30J [variant] - [contacts] [type] [termination] [locking] - [finish] [modification]

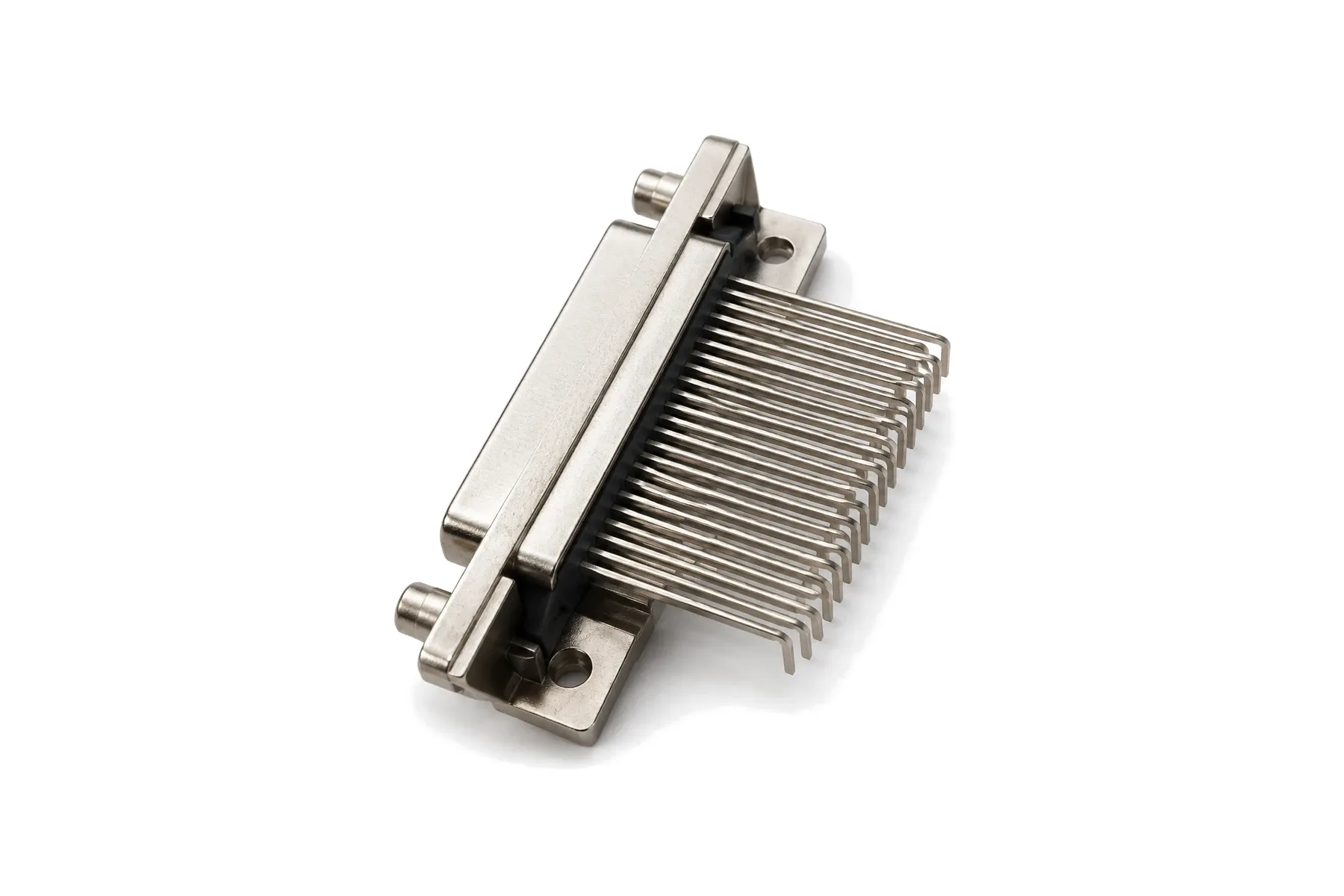

Example: J30JS-25ZKW — Stainless-steel shell, 25 contacts, receptacle with socket contacts, right-angle PCB termination
| Code segment | Options |
|---|---|
| Variant | |
| Contacts | |
| Type | |
| Termination | |
| Locking hardware | |
| Shell finish | |
| Modification |
Pre-wired versions are supplied with 0.12 mm² AFR-250 white wire, 300 mm long, unless you specify otherwise. Wire type, size (0.10–0.15 mm²), color and length can be specified in brackets after the part number.
For different wire requirements on individual contacts, send us a pin-out list.
Cadmium finish (G) is not RoHS compliant and is supplied only on request; nickel is the standard finish.
Contact counts and terminations
Standard contact counts
- 5
- 9
- 15
- 21
- 25
- 31
- 37
- 51
- 66
- 74
- 100
- 144
Terminations
- Crimp (pre-wired)
- Solder cup
- Straight PCB
- Right-angle PCB
Typical applications
- Compact instrumentation and test equipment
- Industrial cameras and sensors
- Robotics and motion control
- Marine and outdoor electronics (stainless-steel shell)
Frequently asked questions
Can J30J replace the Micro-D connector I use now?
J30J is built to GJB 2446, the Chinese counterpart of MIL-DTL-83513, with the same 1.27 mm pitch and twist-pin contact system. Send us the Micro-D part number or drawing you use today. We will propose the matching J30J configuration and can supply samples for your own mating test.
Which contact counts are available?
12 standard sizes: 5, 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 and 144 contacts. Other layouts can be made to order.
Do you make hermetic or sealed Micro-D connectors?
Yes. The J30J M variant is potted (resin) sealed, and the M1 variant is glass-sealed (hermetic). Leak rate is tested to your requirement, including third-party testing on request.
When should I choose a stainless-steel shell?
For marine, outdoor or corrosive environments. Stainless-steel shells are rated for 1000 h salt spray, compared with 48 h for aluminum-alloy shells.
