GRT High-Temperature Connectors, up to +500 °C
−55 to +500 °C · stainless steel · hermetic receptacles

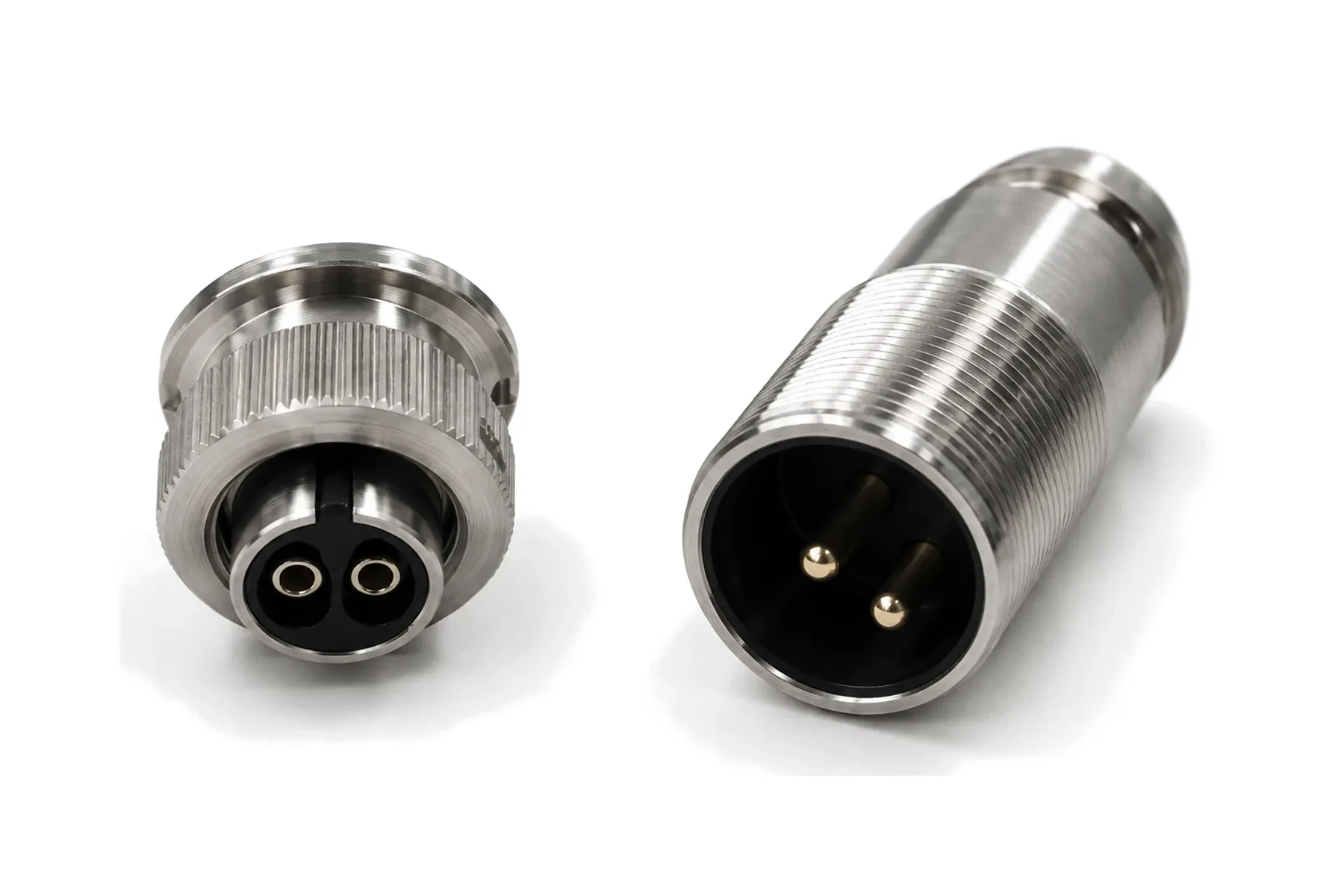

GRT connectors are stainless-steel threaded circular connectors for the hottest zones — engines, exhausts, furnaces and test rigs — rated from −55 to +500 °C depending on the model. Receptacles use glass insulators, and hermetic versions are leak-tested at 0.1 MPa. GRT is built to order: interface and mounting are designed to your requirements.
- Temperature
- −55 to +500 °C
- Contacts
- 2 to 5
- Current rating
- 7.5–13 A
- Shell
- Stainless steel
- Sealing
- Hermetic receptacles
Key features
- Rated to +500 °C (model dependent: 500, 350 or 300 °C)
- Stainless-steel shells with threaded coupling
- Glass-insulated receptacles; hermetic versions leak ≤ 4.55 × 10⁻³ cm³/s at 0.1 MPa
- Many interfaces and mounting dimensions
- Custom-designed to your requirements
Specifications
| Parameter | Value | Condition |
|---|---|---|
| Dielectric withstanding voltage | 1500 V | Room temperature |
| Insulation resistance | ≥ 1000 MΩ / ≥ 20 MΩ | Room temperature / high temperature and humidity |
| Parameter | Value | Condition |
|---|---|---|
| Operating temperature | −55 to +500 °C | Model dependent — see models table |
| Hermeticity | ≤ 4.55 × 10⁻³ cm³/s | 0.1 MPa, hermetic receptacles |
| Durability | 500 mating cycles | |
| Coupling thread | e.g. M20 × 1.5 | GRT16 |
Values not listed above — for example vibration level, leak rate or other environmental tests — can be tested to your requirements, including third-party testing. Specifications are subject to change; contact us for the current datasheet.
Models
| Plug / hermetic receptacle | Temperature | Contacts | Current | Contact resistance |
|---|---|---|---|---|
| GRT10-5KT / GRT10-5JZ | −55 to +500 °C | 5 × Ø 1.0 | 7.5 A | 0.125 Ω |
| GRT11-4KTR2 / GRT11-4JZR2 | −55 to +500 °C | 4 × Ø 1.6 | 13 A | 0.075 Ω |
| GRT12-4KT / GRT12-4JZ | −55 to +500 °C | 4 × Ø 1.6 | 13 A | 0.075 Ω |
| GRT14-05KT / GRT14-05JZ | −55 to +500 °C | 2 × Ø 1.0 | 7.5 A | 0.125 Ω |
| GRT16-2KT / GRT16-2JZ | −55 to +350 °C | 2 × Ø 1.5 | 10 A | 0.017 Ω |
| GRT12-2KT / GRT12-2JZ | −55 to +300 °C | 2 × Ø 1.0 | 7.5 A | 0.125 Ω |
Contact resistance values as published for high-temperature contacts. Other layouts are designed to order.
How to order
GRT [shell] - [contacts] [contact] [type]
Example: GRT16-2KT — Shell 16, 2 contacts, socket contacts, plug
| Code segment | Options |
|---|---|
| Shell | |
| Contacts | |
| Contact | |
| Type |
GRT14 key positions N, A–D.
Contact counts and terminations
Standard contact counts
- 2
- 4
- 5
Terminations
- Solder / weld
Typical applications
- Engine and exhaust sensors
- Industrial furnaces and kilns
- Turbine and combustion test rigs
- High-temperature process instrumentation
Frequently asked questions
How hot can GRT connectors run?
Up to +500 °C for the GRT10, 11, 12 and 14 models; GRT16 is rated to +350 °C and GRT12-2 to +300 °C.
Can GRT be made to my interface?
Yes. GRT is a custom product: we design the interface, mounting and contact layout to your requirements.
Selection guides
From sample to production
Send your requirement
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are made to your order. Third-party testing to your specification is available on request.
