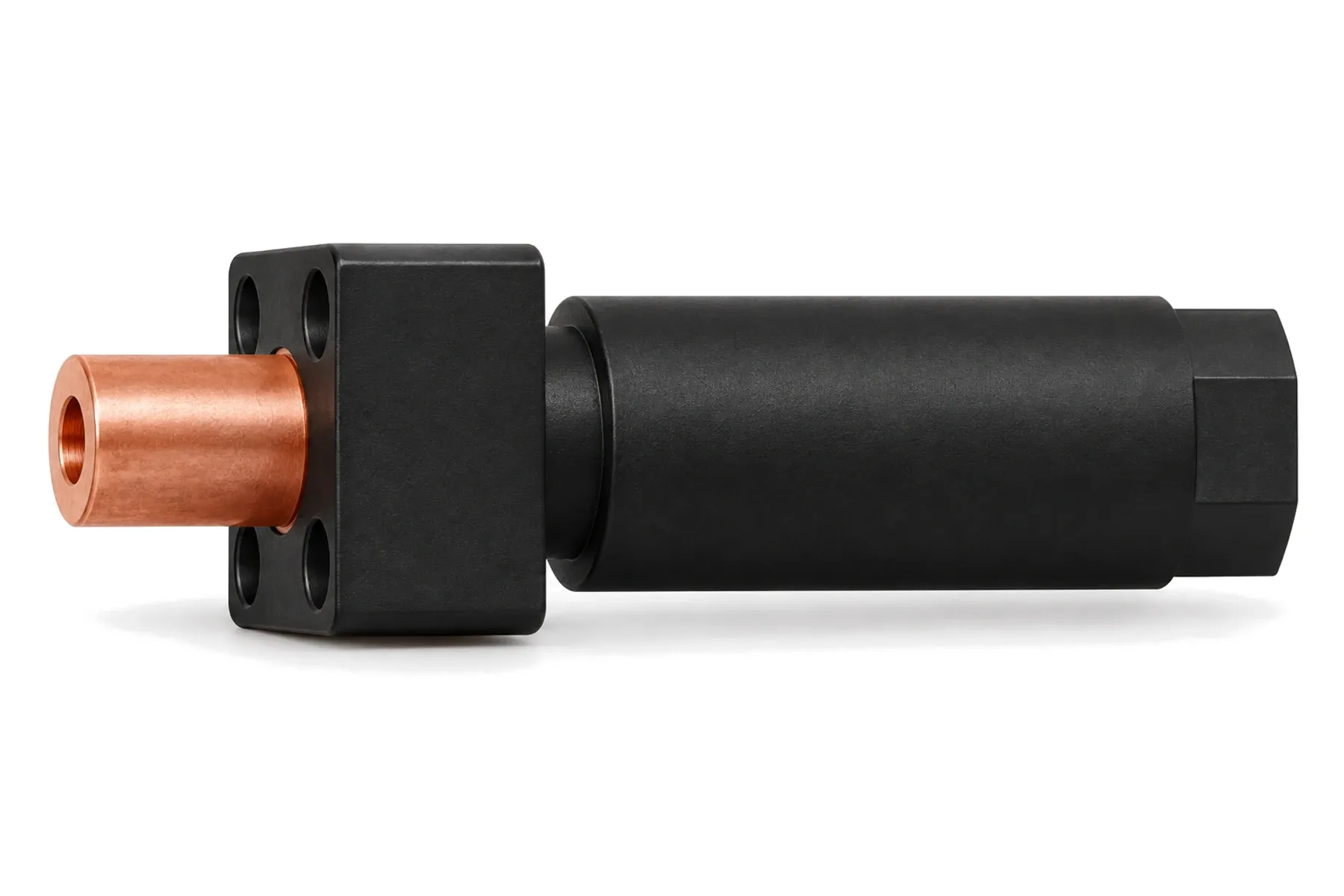

Flange-mount crimp power feedthrough with square flange and copper crimp terminal

Custom High-Current Power Feedthroughs

Designed to your vessel · 450–750 A examples · to +170 °C

Besides the standard studs, we design power feedthroughs to your wall thickness, thread, current and temperature. Two examples: a 750 A O-ring sealed stud with M33 × 2 body thread, and flange-mounted crimp feedthroughs for 450 A and 600 A with PPS insulating covers, rated to +170 °C and 5000 VAC.

Current rating
450–750 A (examples)
Withstanding voltage
2400–5000 VAC
Sealing
O-ring or flange
Temperature
Up to +170 °C

Request a quoteRequest drawingDownload datasheet (PDF)PDF, 163 KB

Key features

  • Designed to your current, voltage, thread and wall
  • C/JXZ-M16-2G01: 750 A, 2400 VAC, FKM O-ring, M33 × 2 stainless body, −20 to +150 °C
  • JXZ-37B / JXZ-43B: flange-mounted, crimp terminal, 600 A / 450 A, 5000 VAC, −40 to +170 °C
  • PPS insulating covers; copper studs and crimp lugs
  • Pressure-tested on every unit

Specifications

C/JXZ-M16-2G01
ParameterValueCondition
Current rating750 A
Withstanding voltage2400 VAC
Insulation resistance≥ 1000 MΩ
Sealing≥ 6 MPa type test; 0.8 MPa on every unit
Temperature−20 to +150 °C
JXZ-37B / JXZ-43B
ParameterValueCondition
Current rating600 A / 450 A
Withstanding voltage5000 VAC
Insulation resistance≥ 1000 MΩ
Sealing0.8 ± 0.05 MPa
Temperature−40 to +170 °C
Mounting70 mm square flange, 4 × M16

Parameters not listed above — for example vibration level, leak rate or other environmental tests — can be tested to your requirements, including third-party testing.

Typical applications

  • Semiconductor manufacturing equipment
  • Vacuum furnaces and heat treatment
  • Refrigeration and gas compressors
  • Power distribution in pressure vessels

Frequently asked questions

What do you need to design a custom feedthrough?

Current, voltage, temperature, pressure or vacuum level, wall thickness and mounting thread or flange, cable or bus-bar connection on each side.

Selection guides

Related series

From sample to production

  1. Send your requirements

    Part number, drawing, pin-out or a short description of your application.

  2. Configuration and quote

    Our engineers match the configuration and reply with a drawing and quotation.

  3. Samples

    Samples are built to order. The minimum order quantity is 10 pieces, and samples and production orders each take 4–8 weeks. Third-party testing to your specification is available on request.

  4. Your approval

    You test the samples in your own equipment and approve them.

  5. Series production

    Production follows the approved sample configuration, with machining, molding, plating and assembly in our own Shenyang factory.
