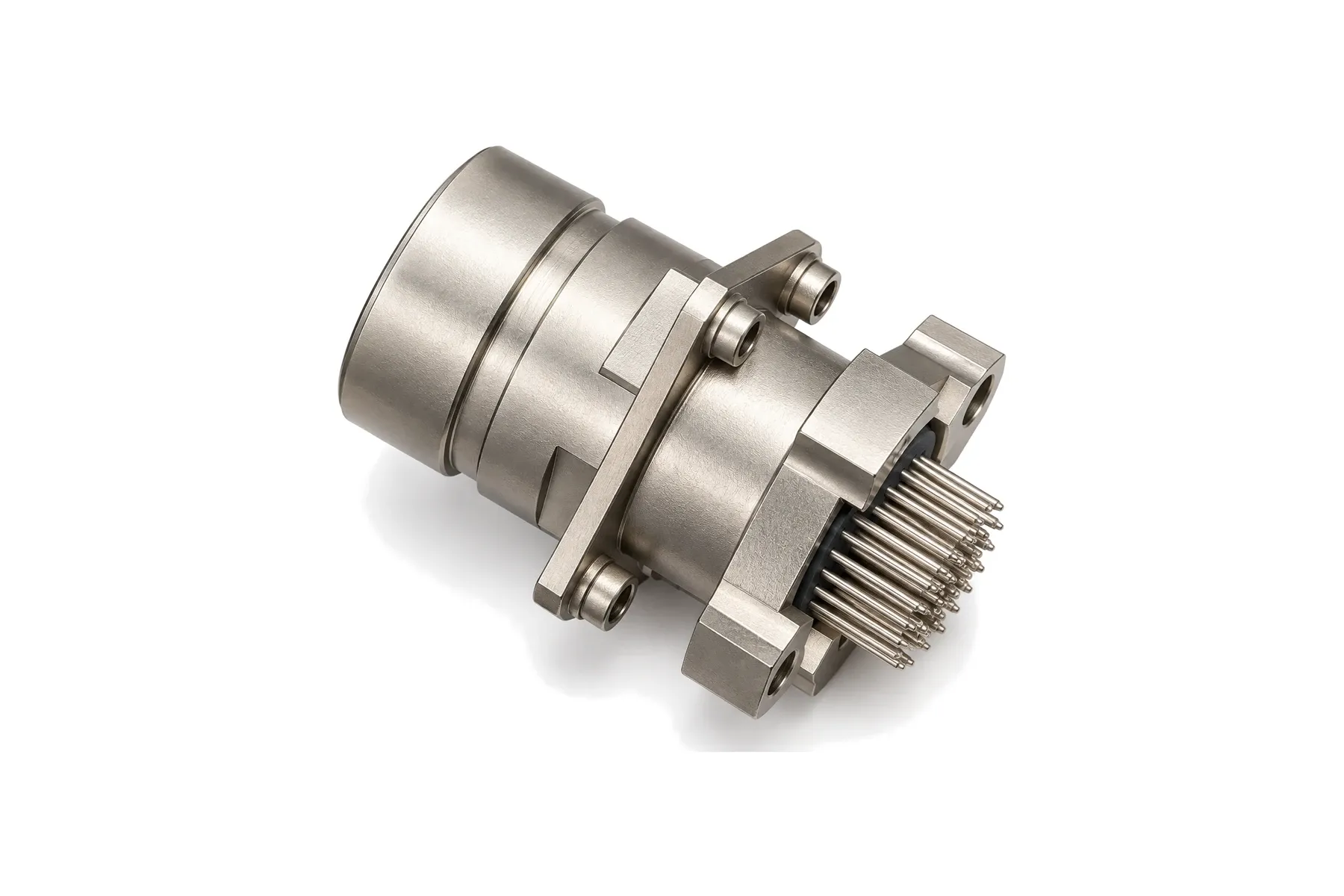

J599/20-D17 double-flange PCB receptacle, rendering

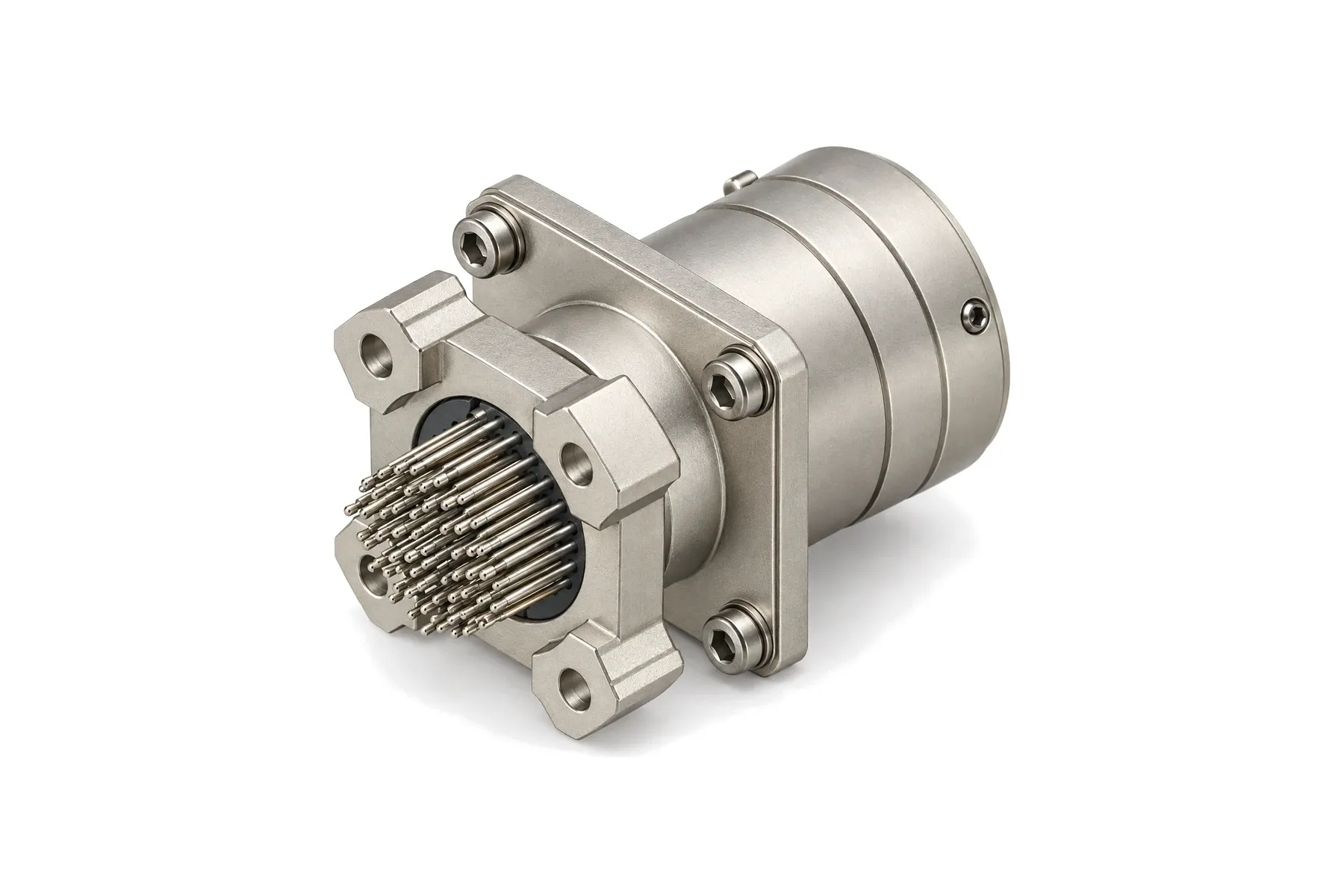

JY27505E-D17 Series I double-flange PCB receptacle, rendering

38999-Type Double-Flange PCB Receptacles

Panel flange + PCB flange · 17 mm spacing · 50 PCB layouts

Double-flange receptacles mount to the equipment panel and to the circuit board at the same time, so the board carries no connector loads. They are available in the bayonet Series I style (JY27505E-D17) and the threaded Series III style (J599/20-D17 and J599/20-E17), with PCB pin or socket contacts and marine-grade versions.

Coupling: Bayonet (Series I) or threaded (Series III)
Shell sizes: 9 to 25
Insert arrangements: 50 PCB layouts
Contact sizes: 22D to 16 (5–13 A)
Temperature: −65 to +200 °C
Flange spacing: 17 mm

Key features

Two flanges: one to the panel, one to the circuit board, 17 mm apart
PCB pin or socket contacts in sizes 22D, 20 and 16
JY27505E-D17 mates with JY27467T Series I bayonet plugs; J599/20-D17 and -E17 mate with J599/26 Series III threaded plugs
M3 threaded inserts (D17) or M3 threaded holes (E17) for fixing
Marine versions: 240 h acid salt spray (pH 3.5) and 84-day mould resistance
PCB hole coordinates supplied for every layout

Specifications

Electrical
Parameter	Value	Condition
Dielectric withstanding voltage, service rating M	1300 / 550 Vrms	Sea level / 15,240 m
Dielectric withstanding voltage, service rating N	1000 / 400 Vrms	Sea level / 15,240 m
Dielectric withstanding voltage, service rating I	1800 / 600 Vrms	Sea level / 15,240 m
Dielectric withstanding voltage, service rating II	2300 / 800 Vrms	Sea level / 15,240 m
Dielectric withstanding voltage at 30,480 m	200 Vrms	All ratings
Insulation resistance	≥ 5000 MΩ	Room temperature
Insulation resistance	≥ 1000 MΩ / ≥ 100 MΩ	High temperature / humidity

Mechanical
Parameter	Value	Condition
Durability	500 mating cycles
Shock	300 g, half-sine, 3 ms
Sine vibration	10–2000 Hz, 30 g, 3 × 4 h	JY27505E-D17
Sine vibration	10–2000 Hz, 60 g (140–2000 Hz), 3 × 12 h	J599/20-D17, -E17, with temperature cycling
Random vibration	50–2000 Hz, 1 g²/Hz (100–2000 Hz), 2 × 8 h
Random vibration	25–2000 Hz, 5 g²/Hz (100–300 Hz), 2 × 8 h
Recommended PCB hole	Ø 0.90 mm (22D, 20); Ø 1.30 mm (16)

Environmental
Parameter	Value	Condition
Operating temperature	−65 to +200 °C	−65 to +175 °C for cadmium finish
Salt spray	48–1000 h	Depends on finish; 1000 h titanium
Acid salt spray	240 h, pH 3.5 ± 0.5	Marine versions
Acid atmosphere	28 days, pH 3.5 ± 0.5	Marine versions
Mould resistance	Grade 2, 28 days / grade 1, 84 days	Standard / marine
Operating altitude	≤ 30,480 m

GJB 599A Series I / GJB 599B Series III — Mating interface of the corresponding series.

Values not listed above — for example vibration level, leak rate or other environmental tests — can be tested to your requirements, including third-party testing. Specifications are subject to change; contact us for the current datasheet.

Versions

Series code	Version	Notes
JY27505E…-D17	Series I bayonet, double flange, M3 threaded inserts	Mates with JY27467T plugs
J599/20…-D17	Series III threaded, double flange, M3 threaded inserts	Mates with J599/26 plugs
J599/20…-E17	Series III threaded, double flange, M3 threaded holes	Mates with J599/26 plugs
…M…	Marine version	Finishes B, E, TA (Series I) or W, K, TA (Series III)

Shell materials and finishes

Code	Shell material	Finish	Shell conductivity	EMI shielding	Temperature	Salt spray
F	Aluminum alloy	Nickel	≤ 1 mΩ	50–65 dB at 10 GHz; 85 dB at 1 GHz	−65 to +200 °C	48 h
B / W	Aluminum alloy	Olive-drab cadmium	≤ 2.5 mΩ	50 dB at 10 GHz; 85 dB at 1 GHz	−65 to +175 °C	500 h
E / K	Stainless steel	Passivated	≤ 50 mΩ (E) / ≤ 10 mΩ (K)	— / 45 dB at 10 GHz	−65 to +200 °C	500 h
S	Stainless steel	Nickel	≤ 1 mΩ	65 dB at 10 GHz	−65 to +200 °C	48 h
TA	Titanium alloy	None	≤ 10–50 mΩ	— / 45 dB at 10 GHz	−65 to +200 °C	1000 h

Contact sizes and current ratings

Contact size	Engaging diameter	Contact resistance	Current rating	Contact retention	Wire size
22D	0.76 mm	≤ 14.6 mΩ	5 A	44 N	—
20	1.02 mm	≤ 7.3 mΩ	7.5 A	67 N	—
16	1.58 mm	≤ 3.7 mΩ	13 A	111 N	—

How to order

[series] [marine] [finish] [shell] [arrangement] [contact] [key] -[flange][spacing]

Example: J599/20WD35PN-E17 — Series III threaded double-flange receptacle, olive-drab cadmium, shell D (size 15), arrangement 15-35, PCB pin contacts, key N, M3 threaded holes, 17 mm flange spacing

Code segment	Options
Series	`JY27505E` Series I bayonet, box-mount rear (shell 09–25) `J599/20` Series III threaded, square flange (shell A–J)
Marine	`(none)` Standard `M` Marine version
Finish	`F, B / W` Aluminum — nickel, olive-drab cadmium `E, K, S` Stainless steel `TA` Titanium alloy
Arrangement	`e.g. 35` See the PCB layout table below
Contact	`PC / SC` PCB pin / PCB socket (also written P / S)
Key	`N` Normal `A B C D (E)` Alternate
Flange	`D17` M3 threaded inserts, 17 mm spacing `E17` M3 threaded holes, 17 mm spacing (J599/20)

Series I example: JY27505E15B35PCN-D17. Other insert arrangements and flange spacings on request.

Insert arrangements

50 standard layouts, viewed from the mating face of the pin insert. The arrangement number is written as shell size – layout (for example 25-35). The service rating sets the withstanding voltage (see specifications).

Shell sizeMinimum contactsContact size

50 layouts

Arrangement	Contacts	Contact sizes	Service rating
9-03	3	3 × size 20	I
9-35	6	6 × size 22D	M
9-98	3	3 × size 20	I
11-02	2	2 × size 16	I
11-04	4	4 × size 20	I
11-05	5	5 × size 20	I
11-35	13	13 × size 22D	M
11-98	6	6 × size 20	I
11-99	7	7 × size 20	I
13-03	3	3 × size 16	II
13-04	4	4 × size 16	I
13-08	8	8 × size 20	I
13-35	22	22 × size 22D	M
13-98	10	10 × size 20	I
15-05	5	5 × size 16	II
15-15	15	1 × size 16, 14 × size 20	I
15-18	18	18 × size 20	I
15-19	19	19 × size 20	I
15-35	37	37 × size 22D	M
15-97	12	4 × size 16, 8 × size 20	I
17-08	8	8 × size 16	II
17-26	26	26 × size 20	I
17-35	55	55 × size 22D	M
17-99	23	2 × size 16, 21 × size 20	I
19-11	11	11 × size 16	II
19-28	28	2 × size 16, 26 × size 20	I
19-30	30	1 × size 16, 29 × size 20	I
19-32	32	32 × size 20	I
19-35	66	66 × size 22D	M
19-45	67	67 × size 22D	M
21-16	16	16 × size 16	II
21-24	24	24 × size 20	I
21-25	25	25 × size 20	I
21-27	27	27 × size 20	I
21-35	79	79 × size 22D	M
21-39	39	2 × size 16, 37 × size 20	I
21-41	41	41 × size 20	I
23-32	32	32 × size 20	I
23-34	34	34 × size 20	I
23-35	100	100 × size 22D	M
23-36	36	36 × size 20	I
23-53	53	53 × size 20	I
23-55	55	55 × size 20	I
23-97	16	16 × size 16	I
23-99	11	11 × size 16	II
25-04	56	8 × size 16, 48 × size 20	I
25-29	29	29 × size 16	I
25-35	128	128 × size 22D	M
25-43	43	20 × size 16, 23 × size 20	I
25-61	61	61 × size 20	I

Typical applications

Control units and electronic enclosures
Rail and transit electronics
Industrial controllers and drives
Test equipment
Marine electronics

Frequently asked questions

Why use a double-flange receptacle?

The panel flange takes the mating and cable loads, and the second flange fixes the connector to the circuit board, so the solder joints carry no mechanical stress.

Do you supply PCB hole coordinates?

Yes. We supply hole coordinates for each layout, for pin and socket versions. Recommended hole diameters are Ø 0.90 mm for sizes 22D and 20 and Ø 1.30 mm for size 16.

Can the flange spacing be changed?

The standard spacing is 17 mm. Tell us your panel-to-board distance and we will review a custom spacing.

Can I get other insert arrangements?

Yes. The table lists the layouts with published PCB coordinates; other 38999 layouts can be supplied with PCB coordinates on request.

From sample to production

Send your requirement
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are made to your order. Third-party testing to your specification is available on request.
Your approval
You test the samples in your own equipment and approve them.
Series production
Production follows the approved sample configuration.
