ZH83723 Circular Connectors (MIL-C-83723 Type), to +260 °C
83723 type · 65 dB shielding · to +260 °C
ZH83723 connectors are built to GJB 4337 (MIL-C-83723 type) in classes A, K, R and Y. A self-sealing grommet with triple-ridge holes seals every wire, O-rings and an interfacial seal close the mating face, and an anti-decoupling device keeps the plug locked. Stainless-steel K versions are fire resistant; Y versions are hermetic.
- Shell sizes
- 8 to 24
- Contact sizes
- 20, 16, 12 (7.5–23 A)
- Temperature
- −65 to +200 °C (+260 °C sealed)
- Shielding
- 65 dB at 100 MHz
Key features
- Built to GJB 4337, MIL-C-83723 type
- Classes A (black anodized), R (nickel), W (cadmium), K (fire-resistant stainless), Y (hermetic stainless)
- Self-sealing grommet, interfacial seal and O-ring
- Anti-decoupling device
- RFI shielding 65 dB at 100 MHz
- Silicone, high-temperature silicone (260 °C) or fluorosilicone grommets

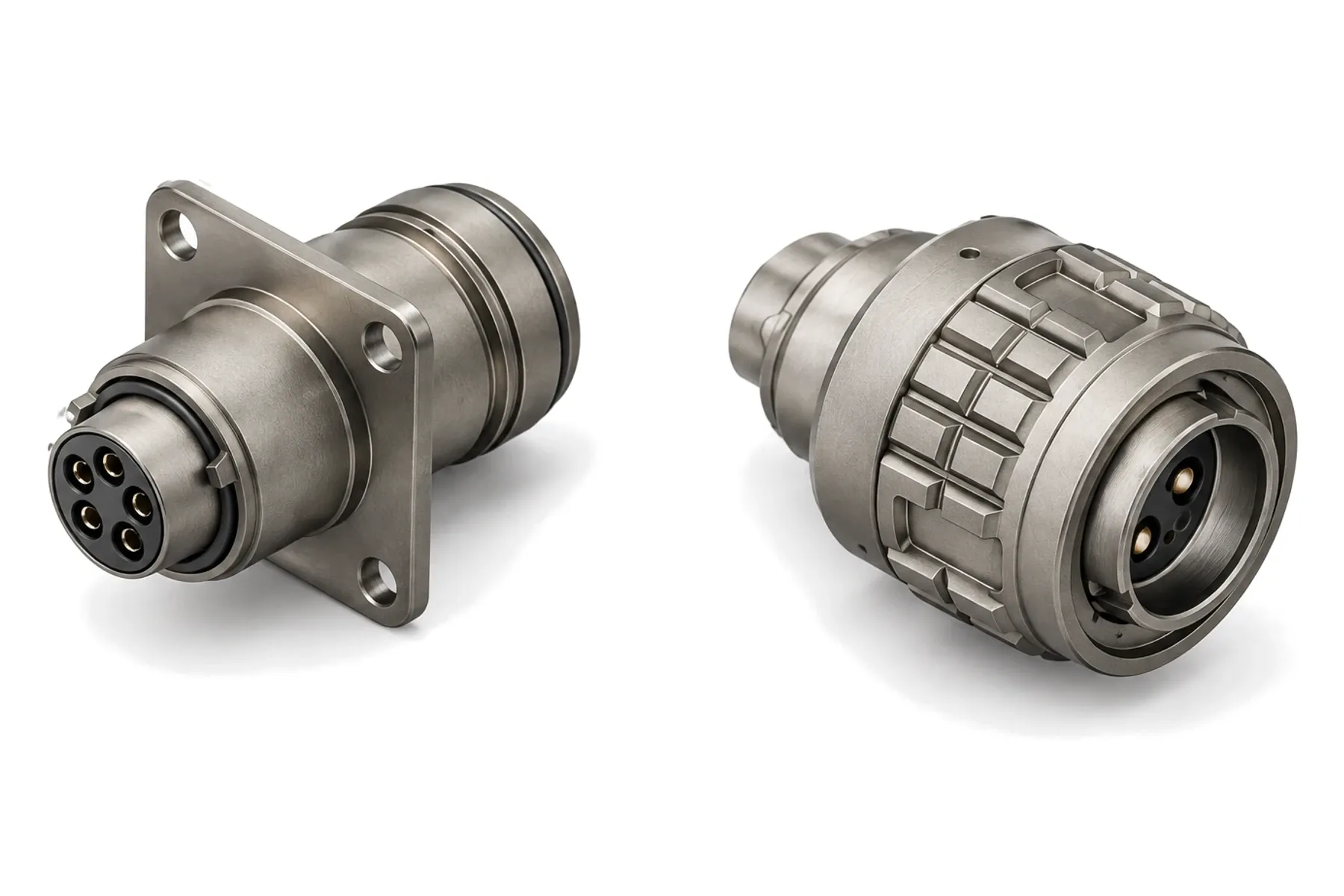

- Marine-environment shielded version (ZH83723R): titanium or stainless shells, acid salt spray and acid atmosphere rated, 65 dB shielding at 100 MHz
Specifications
| Parameter | Value | Condition |
|---|---|---|
| Withstanding voltage, condition I | 1500 / 500 / 375 / 200 V | Sea level / 15,000 / 21,000 / 33,000 m |
| Withstanding voltage, condition II | 2300 / 750 / 500 / 200 V | Sea level / 15,000 / 21,000 / 33,000 m |
| Insulation resistance | ≥ 5000 MΩ / ≥ 100 MΩ | Normal / humidity |
| RFI shielding | 65 dB | 100 MHz |
| Parameter | Value | Condition |
|---|---|---|
| Operating temperature | −65 to +200 °C | −65 to +260 °C sealed versions |
| Sealing | 1 atm differential | |
| Salt spray | 500 h or 48 h | By finish |
| Humidity | 95–98 % at 20 ± 5 °C |
| Parameter | Value | Condition |
|---|---|---|
| Shell | Titanium alloy (TA) or passivated stainless steel (K); hermetic versions Y, TAY | |
| Shell-to-shell conductivity | ≤ 200 mΩ | |
| Temperature | −65 to +200 °C | |
| Acid atmosphere | 28 days, pH 3.5 ± 0.5 | |
| Acid salt spray | 5 cycles of 48 h (24 h spray + 24 h drying), pH 3.5 ± 0.5 | |
| Random vibration | 1 g²/Hz, 41.7 g rms, 8 h per axis | |
| Shock | 2940 m/s² | |
| Hermetic receptacle leak rate | ≤ 1 × 10⁻⁸ Pa·m³/s | 0.1 MPa differential |
| Contacts | 22D 5 A, 20 7.5 A, 16 13 A, 12 23 A |
GJB 4337 (MIL-C-83723 type) — Circular connectors.
Values not listed above — for example vibration level, leak rate or other environmental tests — can be tested to your requirements, including third-party testing. Specifications are subject to change; contact us for the current datasheet.
Connector types
| Code | Type | Finishes |
|---|---|---|
| 0 | Square-flange receptacle | A, R, W, K |
| 1 | Round-flange hermetic receptacle | Y |
| 2 | Square-flange hermetic receptacle | Y |
| 3 | Shielded plug | A, R, W, K |
| 4 | Self-locking plug | A, R, W, K |
| 6 | Plug | A, R, W |
| 7 | Jam-nut receptacle | A, R, W, K |
Versions
| Series code | Version | Notes |
|---|---|---|
| ZH83723…M | Marine-environment shielded version (ZH83723R) | Titanium or stainless shells, 28 days acid atmosphere, 5 × 48 h acid salt spray cycles; hermetic receptacles ≤ 1 × 10⁻⁸ Pa·m³/s |
Contact sizes and current ratings
| Contact size | Engaging diameter | Contact resistance | Current rating | Wire size |
|---|---|---|---|---|
| 20 | 1.0 mm | 7.4 mΩ | 7.5 A | — |
| 16 | 1.6 mm | 3.8 mΩ | 13 A | — |
| 12 | 2.4 mm | 2.2 mΩ | 23 A | — |
How to order
ZH83723[type] M [finish][R][shell][contacts][contact][key][seal]
Example: ZH837230MTAR1005PNV — Marine square-flange receptacle, titanium, engine-bay version, shell 10, 5 contacts, pins, key N, fluorosilicone seals
| Code segment | Options |
|---|---|
| Type | |
| Class | |
| Finish | |
| R | |
| Shell | |
| Contact | |
| Key | |
| Seal material |
The ordering code above is for the marine version; standard ZH83723 part numbers are quoted on request.
Typical applications
- Industrial control and instrumentation
- Rail and transit electronics
- Communication and radio equipment
- Test equipment
Frequently asked questions
Which class should I choose?
A or R for general use, W for maximum corrosion resistance, K where fire resistance is required, Y for hermetic receptacles.
From sample to production
Send your requirement
Part number, drawing, pin-out or a short description of your application.
Configuration and quote
Our engineers match the configuration and reply with a drawing and quotation.
Samples
Samples are made to your order. Third-party testing to your specification is available on request.
Your approval
You test the samples in your own equipment and approve them.
Series production
Production follows the approved sample configuration.
Need a quote or a drawing?
Send your part number, pin-out or drawing. An engineer will reply by email.
